System Design — Notification Service (Email, SMS, Push) with Spring Boot

The Problem

Almost every production system needs notifications. Users expect emails on sign-up, SMS for OTPs, push notifications for real-time updates. But building a notification service that handles multiple channels, templates, priorities, retries, and scale is far from trivial.

This is also a classic system design interview question — and one that reveals whether you understand event-driven architecture, the strategy pattern, and failure handling in distributed systems.

In this post, we’ll design and implement a multi-channel notification service using Spring Boot 3.5, Apache Kafka, and JavaMail with Thymeleaf templates.

---

Requirements

Functional Requirements

#	Requirement
1	Send notifications through Email, SMS, and Push channels
2	Support templates with variable substitution
3	Priority-based processing (HIGH before LOW)
4	Retry failed notifications with exponential backoff
5	Dead letter queue for permanently failed notifications
6	Unified API — single endpoint, channel specified in payload

Non-Functional Requirements

#	Requirement
1	Asynchronous processing — API returns immediately
2	At-least-once delivery guarantee
3	Horizontally scalable consumers per channel
4	Rate limiting per channel (email providers throttle)
5	Observability — log every send attempt and outcome

---

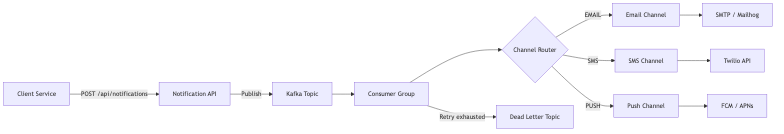

High-Level Architecture

graph LR
    A[Client Service] -->|POST /api/notifications| B[Notification API]
    B -->|Publish| C[Kafka Topic]
    C --> D[Consumer Group]
    D --> E{Channel Router}
    E -->|EMAIL| F[Email Channel]
    E -->|SMS| G[SMS Channel]
    E -->|PUSH| H[Push Channel]
    F --> I[SMTP / Mailhog]
    G --> J[Twilio API]
    H --> K[FCM / APNs]
    D -->|Retry exhausted| L[Dead Letter Topic]

The architecture decouples the API from delivery. The producer returns 202 Accepted immediately, and Kafka handles reliable delivery to the appropriate channel consumer.

---

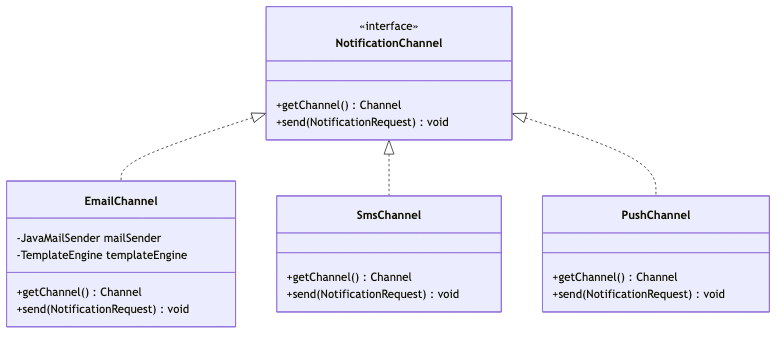

Channel Abstraction — Strategy Pattern

The Strategy pattern is perfect here. Each channel implements the same interface, and the consumer routes to the correct implementation at runtime.

classDiagram
    class NotificationChannel {
        <<interface>>
        +getChannel() Channel
        +send(NotificationRequest) void
    }

    class EmailChannel {
        -JavaMailSender mailSender
        -TemplateEngine templateEngine
        +getChannel() Channel
        +send(NotificationRequest) void
    }

    class SmsChannel {
        +getChannel() Channel
        +send(NotificationRequest) void
    }

    class PushChannel {
        +getChannel() Channel
        +send(NotificationRequest) void
    }

    NotificationChannel <|.. EmailChannel
    NotificationChannel <|.. SmsChannel
    NotificationChannel <|.. PushChannel

The Interface

public interface NotificationChannel {

    NotificationRequest.Channel getChannel();

    void send(NotificationRequest request);
}

Channel Router in Consumer

@Component
public class NotificationConsumer {

    private final Map<Channel, NotificationChannel> channelHandlers;

    public NotificationConsumer(List<NotificationChannel> channels) {
        this.channelHandlers = channels.stream()
            .collect(Collectors.toMap(
                NotificationChannel::getChannel,
                Function.identity()
            ));
    }

    @KafkaListener(topics = "${app.kafka.topic}")
    public void consume(NotificationRequest request) {
        NotificationChannel handler = channelHandlers.get(request.channel());
        handler.send(request);
    }
}

Spring autowires all NotificationChannel implementations as a List, and we build a lookup map. Adding a new channel is just implementing the interface — zero changes to existing code (Open/Closed Principle).

---

Email with Thymeleaf Templates

Email is the most complex channel because of HTML rendering. We use Thymeleaf as a server-side template engine to produce rich HTML emails.

Template (welcome.html)

<div class="content">
    <p>Hi <span th:text="${name}">User</span>,</p>
    <p>Welcome to our platform!</p>
    <a th:href="${activationLink}" class="button">Activate Account</a>
</div>

Email Channel Implementation

@Component
public class EmailChannel implements NotificationChannel {

    private final JavaMailSender mailSender;
    private final TemplateEngine templateEngine;

    @Override
    public void send(NotificationRequest request) {
        String htmlContent = renderTemplate(request.templateName(), request.variables());

        MimeMessage message = mailSender.createMimeMessage();
        MimeMessageHelper helper = new MimeMessageHelper(message, true, "UTF-8");
        helper.setTo(request.recipient());
        helper.setSubject(resolveSubject(request.templateName()));
        helper.setText(htmlContent, true);

        mailSender.send(message);
    }

    private String renderTemplate(String templateName, Map<String, String> variables) {
        Context context = new Context();
        if (variables != null) {
            variables.forEach(context::setVariable);
        }
        return templateEngine.process(templateName, context);
    }
}

For local testing, we use Mailhog (port 1025 for SMTP, port 8025 for web UI).

---

SMS — Twilio Integration Shape

In production, you’d integrate with Twilio or AWS SNS. The implementation shape:

@Component
public class SmsChannel implements NotificationChannel {

    @Override
    public void send(NotificationRequest request) {
        // Production: Twilio API call
        // TwilioRestClient.create(accountSid, authToken)
        //     .messages()
        //     .create(new PhoneNumber(request.recipient()),
        //             new PhoneNumber(fromNumber),
        //             buildMessageBody(request));

        log.info("[SMS] Sending to {}: {}", request.recipient(), buildMessageBody(request));
    }
}

We simulate the SMS channel with logging. The contract is the same — swap in the real Twilio client for production.

---

Push — FCM Integration Shape

Similarly, push notifications would integrate with Firebase Cloud Messaging:

@Component
public class PushChannel implements NotificationChannel {

    @Override
    public void send(NotificationRequest request) {
        // Production: FCM call
        // FirebaseMessaging.getInstance().send(
        //     Message.builder()
        //         .setToken(request.recipient())
        //         .setNotification(Notification.builder()
        //             .setTitle(resolveTitle(request))
        //             .setBody(resolveBody(request))
        //             .build())
        //         .build());

        log.info("[PUSH] Sending to device: {}", request.recipient());
    }
}

---

Priority Queues with Kafka

Different notifications have different urgency levels. An OTP should arrive within seconds. A marketing email can wait.

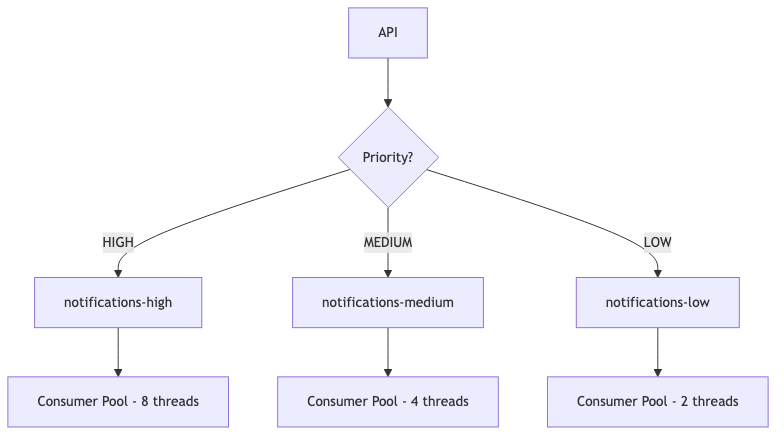

Approach: Separate Topics by Priority

graph TD
    A[API] --> B{Priority?}
    B -->|HIGH| C[notifications-high]
    B -->|MEDIUM| D[notifications-medium]
    B -->|LOW| E[notifications-low]
    C --> F[Consumer Pool - 8 threads]
    D --> G[Consumer Pool - 4 threads]
    E --> H[Consumer Pool - 2 threads]

Priority	Topic	Consumer Threads	Max Latency
HIGH	notifications-high	8	< 5 seconds
MEDIUM	notifications-medium	4	< 30 seconds
LOW	notifications-low	2	< 5 minutes

By allocating more consumer threads to high-priority topics, we ensure OTPs and security alerts are processed before marketing emails.

---

Retry Strategy with Dead Letter Topics

Notifications fail. SMTP servers go down, Twilio rate-limits, FCM tokens expire. We need retry with backoff.

Spring Kafka’s @RetryableTopic handles this elegantly:

@RetryableTopic(
    attempts = "3",
    backoff = @Backoff(delay = 1000, multiplier = 2.0)
)
@KafkaListener(topics = "${app.kafka.topic}")
public void consume(NotificationRequest request) {
    channelHandlers.get(request.channel()).send(request);
}

@DltHandler
public void handleDlt(NotificationRequest request) {
    log.error("Notification permanently failed: {}", request);
    // Alert ops, persist to dead letter table
}

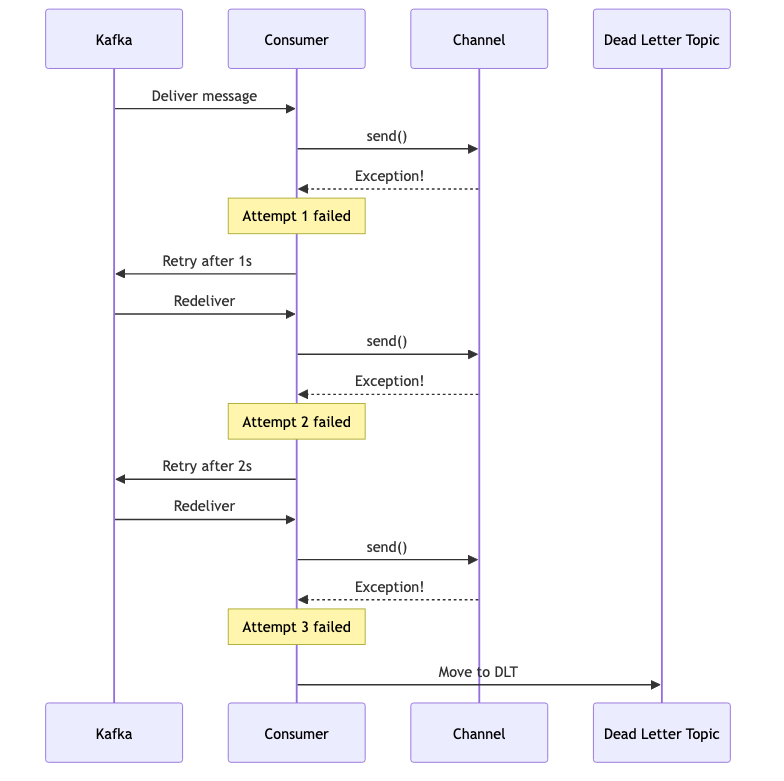

Retry Flow

sequenceDiagram
    participant Kafka
    participant Consumer
    participant Channel
    participant DLT as Dead Letter Topic

    Kafka->>Consumer: Deliver message
    Consumer->>Channel: send()
    Channel-->>Consumer: Exception!
    Note over Consumer: Attempt 1 failed
    Consumer->>Kafka: Retry after 1s
    Kafka->>Consumer: Redeliver
    Consumer->>Channel: send()
    Channel-->>Consumer: Exception!
    Note over Consumer: Attempt 2 failed
    Consumer->>Kafka: Retry after 2s
    Kafka->>Consumer: Redeliver
    Consumer->>Channel: send()
    Channel-->>Consumer: Exception!
    Note over Consumer: Attempt 3 failed
    Consumer->>DLT: Move to DLT

---

Template Engine

The template system uses a convention: template name maps to a file in src/main/resources/templates/.

Template Name	File	Use Case
welcome	welcome.html	New user registration
otp	otp.html	Verification codes
password-reset	password-reset.html	Password recovery
order-confirmation	order-confirmation.html	E-commerce orders

Variables are passed as a Map<String, String> and rendered at send time:

{
  "recipient": "user@example.com",
  "channel": "EMAIL",
  "templateName": "welcome",
  "variables": {
    "name": "Anupam",
    "activationLink": "https://example.com/activate?token=abc123"
  },
  "priority": "HIGH"
}

---

Rate Limiting per Channel

Email providers (SES, SendGrid) enforce rate limits. Twilio has per-second SMS limits. We need per-channel rate limiting.

Channel	Typical Rate Limit	Strategy
Email (SES)	14/second	Token bucket
SMS (Twilio)	1/second per number	Queue with delay
Push (FCM)	500/second	Batch sends

Implementation approach with Resilience4j:

@RateLimiter(name = "email-sender", fallbackMethod = "rateLimited")
public void send(NotificationRequest request) {
    // send email
}

private void rateLimited(NotificationRequest request, Exception ex) {
    throw new RateLimitExceededException("Email rate limit exceeded, will retry");
}

---

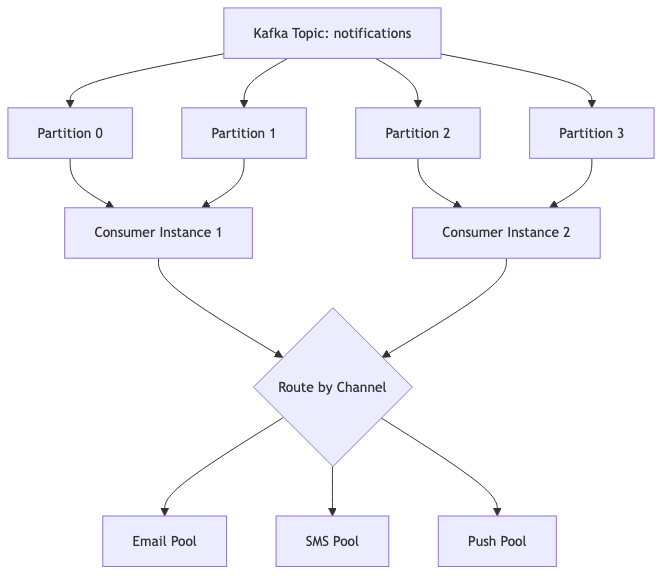

Scaling — Consumer Groups per Channel

graph TD
    A[Kafka Topic: notifications] --> B[Partition 0]
    A --> C[Partition 1]
    A --> D[Partition 2]
    A --> E[Partition 3]

    B --> F[Consumer Instance 1]
    C --> F
    D --> G[Consumer Instance 2]
    E --> G

    F --> H{Route by Channel}
    G --> H
    H --> I[Email Pool]
    H --> J[SMS Pool]
    H --> K[Push Pool]

Scaling strategies:

1. Horizontal scaling — Add more consumer instances (Kafka rebalances partitions)
2. Channel isolation — Separate topics per channel so email failures don’t block SMS
3. Partition by priority — Use message key = priority + channel for even distribution
4. Batch processing — FCM supports sending to 500 devices in one API call

---

Common Problems

Problem	Cause	Solution
Duplicate notifications	At-least-once delivery	Idempotency key per notification
Email in spam folder	Missing SPF/DKIM/DMARC	Configure DNS records properly
Consumer lag	Slow channel (SMTP timeout)	Increase partitions and consumers
Template not found	Typo in template name	Validate template exists at publish time
Rate limit exceeded	Too many sends per second	Per-channel rate limiting
Retry storm	All retries hit at same time	Add jitter to backoff
Lost notifications	Consumer crash before commit	Use manual offset commit after send
Memory pressure	Large email attachments	Stream attachments, limit payload size

---

Full Working Example

The complete source code is available on GitHub:

spring-boot-notification-service

To run locally:

# Start Kafka + Mailhog
docker compose up -d

# Run the application
./mvnw spring-boot:run

# Send an email notification
curl -X POST http://localhost:8080/api/notifications \
  -H "Content-Type: application/json" \
  -d '{
    "recipient": "user@example.com",
    "channel": "EMAIL",
    "templateName": "welcome",
    "variables": {"name": "Anupam", "activationLink": "https://example.com/activate"},
    "priority": "HIGH"
  }'

# Check Mailhog UI for the email
open http://localhost:8025

---
