GitHub Actions CI/CD for Spring Boot — Build, Test, Deploy

Build a production CI/CD pipeline for Spring Boot with GitHub Actions. Covers build + test, Docker image publishing, Kubernetes deployment, environment secrets, caching for fast builds, and branch protection strategies.

Posted Aug 22, 2026

By Anupam Sinha

views 10 min read

The Problem — Manual Builds

Manual deployment processes create friction and risk:

“It works on my machine” becomes a recurring problem
No automated tests catch regressions before merge
Docker builds are inconsistent across team members
Deployments require tribal knowledge and manual steps
No audit trail of who deployed what and when

A proper CI/CD pipeline automates the path from commit to production, catching issues early and deploying reliably every time.

What We’re Building

graph LR
    A[Push to Branch] --> B[Build + Test]
    B --> C[Docker Image]
    C --> D[Push to GHCR]
    D --> E{Branch?}
    E -->|main| F[Deploy to Staging]
    E -->|release/*| G[Deploy to Production]
    F --> H[Smoke Tests]
    H --> I[Ready for Promotion]

The complete pipeline:

Build & Test — Compile, run unit + integration tests
Docker Build — Create optimized container image
Publish — Push to GitHub Container Registry (GHCR)
Deploy — Apply to Kubernetes cluster
Verify — Run smoke tests against deployed service

Basic Workflow — Build and Test

Start with the foundation: compile code and run tests on every push and pull request.


# .github/workflows/ci.yml
name: CI — Build & Test

on:
  push:
    branches: [main, develop]
  pull_request:
    branches: [main]

permissions:
  contents: read
  checks: write

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout code
        uses: actions/checkout@v4

      - name: Set up Java 21
        uses: actions/setup-java@v4
        with:
          java-version: '21'
          distribution: 'temurin'
          cache: 'maven'

      - name: Build and test
        run: ./mvnw verify --batch-mode --no-transfer-progress

      - name: Upload test results
        if: always()
        uses: actions/upload-artifact@v4
        with:
          name: test-results
          path: target/surefire-reports/

      - name: Upload coverage report
        uses: actions/upload-artifact@v4
        with:
          name: coverage-report
          path: target/site/jacoco/

Key points:

actions/setup-java@v4 with cache: 'maven' automatically caches ~/.m2/repository
--batch-mode disables interactive prompts
--no-transfer-progress reduces log noise
Test results upload even on failure (if: always())

Adding Docker Build

Using a Multi-stage Dockerfile


# Dockerfile
FROM eclipse-temurin:21-jdk-alpine AS builder
WORKDIR /app
COPY pom.xml mvnw ./
COPY .mvn .mvn
RUN ./mvnw dependency:go-offline --batch-mode
COPY src src
RUN ./mvnw package -DskipTests --batch-mode

FROM eclipse-temurin:21-jre-alpine
WORKDIR /app
RUN addgroup -S spring && adduser -S spring -G spring
USER spring
COPY --from=builder /app/target/*.jar app.jar
EXPOSE 8080
HEALTHCHECK --interval=30s --timeout=3s \
  CMD wget -qO- http://localhost:8080/actuator/health || exit 1
ENTRYPOINT ["java", "-jar", "app.jar"]

Using Jib (No Dockerfile Needed)


<!-- pom.xml -->
<plugin>
    <groupId>com.google.cloud.tools</groupId>
    <artifactId>jib-maven-plugin</artifactId>
    <version>3.4.4</version>
    <configuration>
        <from>
            <image>eclipse-temurin:21-jre-alpine</image>
        </from>
        <to>
            <image>ghcr.io/${env.GITHUB_REPOSITORY}</image>
            <tags>
                <tag>${project.version}</tag>
                <tag>latest</tag>
            </tags>
        </to>
    </configuration>
</plugin>

Publishing to GHCR


# .github/workflows/publish.yml
name: Build & Publish Docker Image

on:
  push:
    branches: [main]
    tags: ['v*']

permissions:
  contents: read
  packages: write

env:
  REGISTRY: ghcr.io
  IMAGE_NAME: $

jobs:
  build-and-push:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Set up Java 21
        uses: actions/setup-java@v4
        with:
          java-version: '21'
          distribution: 'temurin'
          cache: 'maven'

      - name: Run tests
        run: ./mvnw verify --batch-mode

      - name: Log in to GHCR
        uses: docker/login-action@v3
        with:
          registry: $
          username: $
          password: $

      - name: Extract metadata
        id: meta
        uses: docker/metadata-action@v5
        with:
          images: $/$
          tags: |
            type=ref,event=branch
            type=semver,pattern=
            type=sha,prefix=

      - name: Build and push Docker image
        uses: docker/build-push-action@v5
        with:
          context: .
          push: true
          tags: $
          labels: $
          cache-from: type=gha
          cache-to: type=gha,mode=max

Tags generated:

Push to main → ghcr.io/user/repo:main
Tag v1.2.3 → ghcr.io/user/repo:1.2.3
Every push → ghcr.io/user/repo:<sha>

Deploying to Kubernetes

Kubernetes Manifests


# k8s/deployment.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-app
  namespace: production
spec:
  replicas: 3
  selector:
    matchLabels:
      app: spring-app
  template:
    metadata:
      labels:
        app: spring-app
    spec:
      containers:
        - name: spring-app
          image: ghcr.io/anupamsinha/spring-app:IMAGE_TAG
          ports:
            - containerPort: 8080
          env:
            - name: SPRING_PROFILES_ACTIVE
              value: "production"
            - name: DB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: app-secrets
                  key: db-password
          livenessProbe:
            httpGet:
              path: /actuator/health/liveness
              port: 8080
            initialDelaySeconds: 30
          readinessProbe:
            httpGet:
              path: /actuator/health/readiness
              port: 8080
            initialDelaySeconds: 10
          resources:
            requests:
              memory: "512Mi"
              cpu: "250m"
            limits:
              memory: "1Gi"
              cpu: "1000m"

Deploy Job in Workflow


  deploy:
    needs: build-and-push
    runs-on: ubuntu-latest
    if: github.ref == 'refs/heads/main'
    environment: staging

    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Configure kubectl
        uses: azure/k8s-set-context@v4
        with:
          kubeconfig: $

      - name: Update image tag
        run: |
          sed -i "s|IMAGE_TAG|$|g" k8s/deployment.yml

      - name: Deploy to cluster
        run: |
          kubectl apply -f k8s/deployment.yml
          kubectl rollout status deployment/spring-app -n production --timeout=300s

      - name: Smoke test
        run: |
          ENDPOINT=$(kubectl get svc spring-app -n production -o jsonpath='{.status.loadBalancer.ingress[0].hostname}')
          curl --fail --retry 5 --retry-delay 10 "http://${ENDPOINT}:8080/actuator/health"

Environment Secrets

Configure secrets in GitHub repository settings (Settings → Secrets → Actions):

Secret	Purpose	Example
`KUBE_CONFIG`	Kubernetes cluster auth	Base64-encoded kubeconfig
`DB_PASSWORD`	Database credentials	Production DB password
`SONAR_TOKEN`	Code quality analysis	SonarCloud token
`SLACK_WEBHOOK_URL`	Deployment notifications	Slack incoming webhook

Use environments for deployment approvals:


jobs:
  deploy-production:
    environment:
      name: production
      url: https://app.example.com
    # Requires manual approval from designated reviewers

Matrix Testing — Java 17 and 21

Test against multiple Java versions to ensure compatibility:


jobs:
  test:
    runs-on: ubuntu-latest
    strategy:
      matrix:
        java-version: ['17', '21']
      fail-fast: false

    steps:
      - uses: actions/checkout@v4

      - name: Set up Java $
        uses: actions/setup-java@v4
        with:
          java-version: $
          distribution: 'temurin'
          cache: 'maven'

      - name: Test with Java $
        run: ./mvnw verify --batch-mode

fail-fast: false ensures all matrix combinations run even if one fails — useful for knowing the full scope of compatibility issues.

Dependency Caching

Maven dependencies download once and are cached for subsequent runs:


      - name: Set up Java 21
        uses: actions/setup-java@v4
        with:
          java-version: '21'
          distribution: 'temurin'
          cache: 'maven'  # Automatically caches ~/.m2/repository

For finer control or additional caches:


      - name: Cache Maven dependencies
        uses: actions/cache@v4
        with:
          path: |
            ~/.m2/repository
            !~/.m2/repository/com/anupam
          key: maven-$
          restore-keys: |
            maven-

      - name: Cache Docker layers
        uses: actions/cache@v4
        with:
          path: /tmp/.buildx-cache
          key: docker-$
          restore-keys: |
            docker-

Impact on build times:

Scenario	Without Cache	With Cache	Savings
Fresh Maven dependencies	2-4 min	10-20 sec	~90%
Docker layer rebuild	3-5 min	30-60 sec	~80%
Full pipeline	8-12 min	3-5 min	~60%

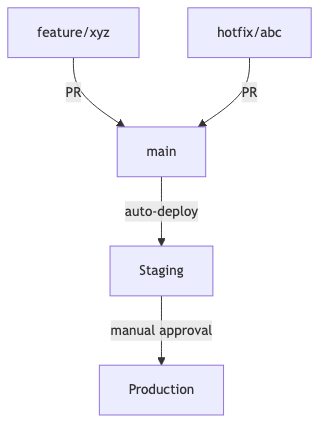

Branch Strategy

graph TD
    A[feature/xyz] -->|PR| B[main]
    B -->|auto-deploy| C[Staging]
    C -->|manual approval| D[Production]

    E[hotfix/abc] -->|PR| B

Branch	Trigger	Action
`feature/*`	Push, PR	Build + Test only
`main`	Merge	Build + Test + Deploy to Staging
`release/*`	Tag	Build + Test + Deploy to Production
`hotfix/*`	PR to main	Build + Test (fast-tracked review)

Branch protection rules (Settings → Branches → Add rule):

Require status checks to pass (CI must be green)
Require pull request reviews (at least 1 approval)
Require branches to be up to date before merging
Restrict force pushes

Reusable Workflows

Extract common steps into reusable workflows to avoid duplication:


# .github/workflows/reusable-build.yml
name: Reusable Build

on:
  workflow_call:
    inputs:
      java-version:
        required: false
        type: string
        default: '21'
    outputs:
      image-tag:
        description: "Docker image tag"
        value: $

jobs:
  build:
    runs-on: ubuntu-latest
    outputs:
      tag: $
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-java@v4
        with:
          java-version: $
          distribution: 'temurin'
          cache: 'maven'
      - run: ./mvnw verify --batch-mode

Call from another workflow:


# .github/workflows/deploy.yml
jobs:
  build:
    uses: ./.github/workflows/reusable-build.yml
    with:
      java-version: '21'

  deploy:
    needs: build
    runs-on: ubuntu-latest
    steps:
      - run: echo "Deploying image tag $"

Complete Production Workflow

Putting it all together:


# .github/workflows/pipeline.yml
name: Production Pipeline

on:
  push:
    branches: [main]
  pull_request:
    branches: [main]

permissions:
  contents: read
  packages: write
  checks: write

env:
  REGISTRY: ghcr.io
  IMAGE_NAME: $

jobs:
  test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-java@v4
        with:
          java-version: '21'
          distribution: 'temurin'
          cache: 'maven'
      - name: Build and test
        run: ./mvnw verify --batch-mode --no-transfer-progress
      - name: Publish test results
        if: always()
        uses: dorny/test-reporter@v1
        with:
          name: JUnit Tests
          path: target/surefire-reports/*.xml
          reporter: java-junit

  publish:
    needs: test
    if: github.event_name == 'push' && github.ref == 'refs/heads/main'
    runs-on: ubuntu-latest
    outputs:
      image-tag: $
    steps:
      - uses: actions/checkout@v4
      - uses: docker/login-action@v3
        with:
          registry: $
          username: $
          password: $
      - id: meta
        uses: docker/metadata-action@v5
        with:
          images: $/$
          tags: |
            type=sha,prefix=
            type=raw,value=latest
      - uses: docker/build-push-action@v5
        with:
          context: .
          push: true
          tags: $
          cache-from: type=gha
          cache-to: type=gha,mode=max

  deploy-staging:
    needs: publish
    runs-on: ubuntu-latest
    environment: staging
    steps:
      - uses: actions/checkout@v4
      - uses: azure/k8s-set-context@v4
        with:
          kubeconfig: $
      - run: |
          sed -i "s|IMAGE_TAG|$|g" k8s/deployment.yml
          kubectl apply -f k8s/deployment.yml
          kubectl rollout status deployment/spring-app --timeout=300s

  deploy-production:
    needs: deploy-staging
    runs-on: ubuntu-latest
    environment:
      name: production
      url: https://app.example.com
    steps:
      - uses: actions/checkout@v4
      - uses: azure/k8s-set-context@v4
        with:
          kubeconfig: $
      - run: |
          sed -i "s|IMAGE_TAG|$|g" k8s/deployment.yml
          kubectl apply -f k8s/deployment.yml
          kubectl rollout status deployment/spring-app --timeout=300s

Common Problems

Problem	Cause	Solution
Tests pass locally, fail in CI	Environment differences	Pin Java version; use testcontainers for DB
Slow builds (10+ min)	No caching; sequential steps	Enable Maven cache; parallelize test/lint jobs
Docker push fails	Missing GHCR permissions	Add `packages: write` to permissions
Deploy timeout	App takes too long to start	Increase `initialDelaySeconds`; optimize startup
Secrets not available in PRs	Fork PRs can’t access secrets	Use `pull_request_target` cautiously; or skip deploy for PRs
Cache keeps missing	Key changes every run	Use `hashFiles('**/pom.xml')` as stable cache key
Flaky tests	Timing issues, shared state	Isolate tests; add retries for integration tests

References

Spring Boot, DevOps

This post is licensed under CC BY 4.0 by the author.
