Migrating from Spring Cloud Netflix to Spring Cloud 2024

A practical migration guide from deprecated Spring Cloud Netflix components (Ribbon, Hystrix, Zuul) to their modern replacements (Spring Cloud LoadBalancer, Resilience4j, Spring Cloud Gateway). Covers each component with before/after code, configuration changes, and migration strategy.

Posted
By Anupam Sinha
views 8 min read
Migrating from Spring Cloud Netflix to Spring Cloud 2024

The Problem

Your microservices run on Spring Cloud Netflix — Ribbon for load balancing, Hystrix for circuit breaking, Zuul for API gateway. These served the community well but are now:

  • Ribbon — maintenance mode since 2018, removed from Spring Cloud 2022+
  • Hystrix — archived by Netflix in 2018, removed from Spring Cloud 2022+
  • Zuul 1 — replaced by Spring Cloud Gateway years ago
  • Eureka — still maintained but many teams are moving to Kubernetes service discovery

If you’re on Spring Boot 3.x / Spring Cloud 2023+, the Netflix dependencies don’t compile anymore. You must migrate.

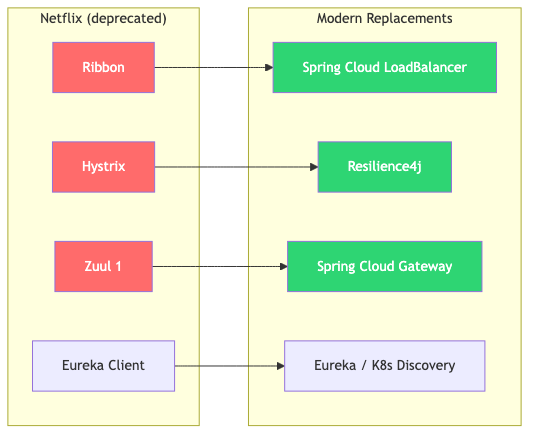

Migration Map

flowchart LR
    subgraph "Netflix (deprecated)"
        A[Ribbon]
        B[Hystrix]
        C[Zuul 1]
        D[Eureka Client]
    end

    subgraph "Modern Replacements"
        E[Spring Cloud LoadBalancer]
        F[Resilience4j]
        G[Spring Cloud Gateway]
        H[Eureka / K8s Discovery]
    end

    A --> E
    B --> F
    C --> G
    D --> H

    style A fill:#ff6b6b,color:#fff
    style B fill:#ff6b6b,color:#fff
    style C fill:#ff6b6b,color:#fff
    style E fill:#2ed573,color:#fff
    style F fill:#2ed573,color:#fff
    style G fill:#2ed573,color:#fff

diagram

Old (Netflix)New (Spring Cloud 2024)Migration Difficulty
RibbonSpring Cloud LoadBalancerEasy
HystrixResilience4jMedium
Zuul 1Spring Cloud GatewayMedium
EurekaEureka (still works) or K8sNone / Optional
Feign + RibbonOpenFeign + LoadBalancerEasy

Migration 1: Ribbon → Spring Cloud LoadBalancer

Before (Ribbon)

1
2
3
4
5

<!-- Old dependency -->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
</dependency>

1
2
3
4
5

# Old config
payment-service:
  ribbon:
    listOfServers: localhost:8081,localhost:8082
    NFLoadBalancerRuleClassName: com.netflix.loadbalancer.RoundRobinRule

1
2
3
4
5
6
7
8

@Bean
@LoadBalanced
public RestTemplate restTemplate() {
    return new RestTemplate();
}

// Usage
restTemplate.getForObject("http://payment-service/api/payments", List.class);

After (Spring Cloud LoadBalancer)

1
2
3
4
5

<!-- New dependency -->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-loadbalancer</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12

# New config (with static instances, or use service discovery)
spring:
  cloud:
    loadbalancer:
      configurations: default
    discovery:
      client:
        simple:
          instances:
            payment-service:
              - uri: http://localhost:8081
              - uri: http://localhost:8082

1
2
3
4
5
6
7
8

@Bean
@LoadBalanced
public RestTemplate restTemplate() {
    return new RestTemplate();  // Same usage!
}

// Usage — identical, zero code change
restTemplate.getForObject("http://payment-service/api/payments", List.class);

What changed: the dependency. The @LoadBalanced RestTemplate pattern works exactly the same. The load balancer implementation is now Spring’s own, not Netflix Ribbon.

Custom Load Balancer Strategy

1
2
3
4
5

// Ribbon way (old)
@RibbonClient(name = "payment-service", configuration = RibbonConfig.class)

// Spring Cloud LoadBalancer way (new)
@LoadBalancerClient(name = "payment-service", configuration = LoadBalancerConfig.class)

1
2
3
4
5
6
7
8
9
10
11
12

public class LoadBalancerConfig {

    @Bean
    public ServiceInstanceListSupplier serviceInstanceListSupplier(
            ConfigurableApplicationContext context) {
        return ServiceInstanceListSupplier.builder()
                .withDiscoveryClient()
                .withHealthChecks()
                .withRetry()
                .build(context);
    }
}

Migration 2: Hystrix → Resilience4j

Before (Hystrix)

1
2
3
4

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

@HystrixCommand(
    fallbackMethod = "getPaymentFallback",
    commandProperties = {
        @HystrixProperty(name = "circuitBreaker.requestVolumeThreshold", value = "10"),
        @HystrixProperty(name = "circuitBreaker.sleepWindowInMilliseconds", value = "5000"),
        @HystrixProperty(name = "execution.isolation.thread.timeoutInMilliseconds", value = "3000")
    }
)
public Payment getPayment(String id) {
    return restTemplate.getForObject("http://payment-service/api/payments/" + id, Payment.class);
}

public Payment getPaymentFallback(String id) {
    return Payment.unknown(id);
}

After (Resilience4j)

1
2
3
4

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-circuitbreaker-resilience4j</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

resilience4j:
  circuitbreaker:
    instances:
      paymentService:
        sliding-window-size: 10
        failure-rate-threshold: 50
        wait-duration-in-open-state: 5s
        permitted-number-of-calls-in-half-open-state: 3
  timelimiter:
    instances:
      paymentService:
        timeout-duration: 3s
  retry:
    instances:
      paymentService:
        max-attempts: 3
        wait-duration: 1s

1
2
3
4
5
6
7
8
9
10
11

@CircuitBreaker(name = "paymentService", fallbackMethod = "getPaymentFallback")
@TimeLimiter(name = "paymentService")
@Retry(name = "paymentService")
public Payment getPayment(String id) {
    return restTemplate.getForObject("http://payment-service/api/payments/" + id, Payment.class);
}

public Payment getPaymentFallback(String id, Exception ex) {
    log.warn("Circuit breaker fallback for payment {}: {}", id, ex.getMessage());
    return Payment.unknown(id);
}

Key differences:

  • Hystrix used a thread pool model; Resilience4j uses semaphore-based (lighter)
  • Configuration moves from annotations to YAML (cleaner, centralized)
  • Resilience4j gives you circuit breaker + retry + rate limiter + bulkhead as separate composable concerns
  • Fallback methods receive the exception (useful for logging)

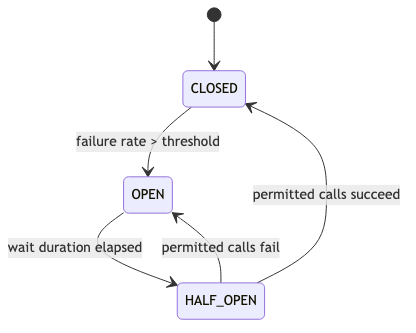

Resilience4j State Machine

stateDiagram-v2
    [*] --> CLOSED
    CLOSED --> OPEN : failure rate > threshold
    OPEN --> HALF_OPEN : wait duration elapsed
    HALF_OPEN --> CLOSED : permitted calls succeed
    HALF_OPEN --> OPEN : permitted calls fail

diagram

Migration 3: Zuul → Spring Cloud Gateway

Before (Zuul 1)

1
2
3
4

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11

zuul:
  routes:
    payment-service:
      path: /api/payments/**
      serviceId: payment-service
    order-service:
      path: /api/orders/**
      serviceId: order-service
  host:
    connect-timeout-millis: 5000
    socket-timeout-millis: 10000

1
2
3

@SpringBootApplication
@EnableZuulProxy
public class GatewayApplication { }

After (Spring Cloud Gateway)

1
2
3
4

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

spring:
  cloud:
    gateway:
      routes:
        - id: payment-service
          uri: lb://payment-service
          predicates:
            - Path=/api/payments/**
          filters:
            - CircuitBreaker=name=paymentCB,fallbackUri=forward:/fallback/payments
            - Retry=3

        - id: order-service
          uri: lb://order-service
          predicates:
            - Path=/api/orders/**
          filters:
            - AddRequestHeader=X-Request-Source, gateway

1
2
3
4
5
6

@SpringBootApplication
public class GatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class, args);
    }
}

Key differences:

  • Zuul 1 is servlet-based (blocking); Gateway is reactive (non-blocking, based on WebFlux)
  • Gateway has built-in circuit breaker, retry, rate limiting filters
  • Route predicates are more powerful (path, header, cookie, time-based)
  • No @Enable* annotation needed

Zuul Filter → Gateway Filter

1
2
3
4
5
6
7
8
9
10
11
12

// Zuul (old)
public class AuthFilter extends ZuulFilter {
    @Override public String filterType() { return "pre"; }
    @Override public int filterOrder() { return 1; }
    @Override public boolean shouldFilter() { return true; }
    @Override public Object run() {
        RequestContext ctx = RequestContext.getCurrentContext();
        // Add auth header
        ctx.addZuulRequestHeader("X-Auth-User", getUser());
        return null;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

// Gateway (new)
@Component
public class AuthGatewayFilter implements GlobalFilter, Ordered {

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        String user = extractUser(exchange.getRequest());
        ServerHttpRequest modified = exchange.getRequest().mutate()
                .header("X-Auth-User", user)
                .build();
        return chain.filter(exchange.mutate().request(modified).build());
    }

    @Override
    public int getOrder() { return 1; }
}

Migration 4: Feign + Ribbon → OpenFeign + LoadBalancer

Before

1
2
3
4
5

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!-- Ribbon was pulled in transitively -->

After

1
2
3
4
5
6
7
8

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-loadbalancer</artifactId>
</dependency>

1
2
3
4
5
6
7

// Same Feign interface — zero changes
@FeignClient(name = "payment-service")
public interface PaymentClient {

    @GetMapping("/api/payments/{id}")
    Payment getPayment(@PathVariable String id);
}

OpenFeign now uses Spring Cloud LoadBalancer instead of Ribbon automatically. Your Feign interfaces don’t change at all.

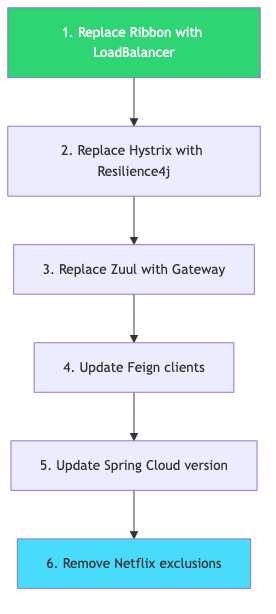

Migration Strategy

flowchart TD
    A[1. Replace Ribbon with LoadBalancer] --> B[2. Replace Hystrix with Resilience4j]
    B --> C[3. Replace Zuul with Gateway]
    C --> D[4. Update Feign clients]
    D --> E[5. Update Spring Cloud version]
    E --> F[6. Remove Netflix exclusions]

    style A fill:#2ed573,color:#fff
    style F fill:#48dbfb,color:#333

diagram

Step-by-Step

  1. Start with LoadBalancer — least disruptive, drop-in replacement
  2. Migrate Hystrix — audit all @HystrixCommand methods, convert to Resilience4j
  3. Migrate Zuul — biggest change (servlet → reactive), may need separate deployment
  4. Update Feign — just add LoadBalancer dependency, remove Ribbon
  5. Bump Spring Cloud BOM — to 2023.x or 2024.x
  6. Remove Netflix artifacts — clean up any remaining exclusions or deprecated configs

Parallel Running

During migration, you can run old and new side by side:

1
2
3
4
5
6
7
8
9
10
11

<!-- Exclude Ribbon from OpenFeign temporarily -->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
    <exclusions>
        <exclusion>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-netflix-ribbon</artifactId>
        </exclusion>
    </exclusions>
</dependency>

Configuration Comparison

SettingRibbon/HystrixLoadBalancer/Resilience4j
Load balancer strategyribbon.NFLoadBalancerRuleClassNameServiceInstanceListSupplier bean
Circuit breaker threshold@HystrixProperty annotationresilience4j.circuitbreaker.instances.*.failure-rate-threshold
Timeouthystrix.command.*.execution.isolation.thread.timeoutInMillisecondsresilience4j.timelimiter.instances.*.timeout-duration
RetryCustom Ribbon retry configresilience4j.retry.instances.*
FallbackfallbackMethod in @HystrixCommandfallbackMethod in @CircuitBreaker
Health indicator/hystrix.stream/actuator/health (auto-configured)

Monitoring After Migration

Resilience4j Actuator Endpoints

1
2
3
4
5
6
7
8

management:
  endpoints:
    web:
      exposure:
        include: health,circuitbreakers,retries
  health:
    circuitbreakers:
      enabled: true

1
2
3
4
5
6
7
8
9
10
11
12
13
14

# Check circuit breaker state
curl http://localhost:8080/actuator/circuitbreakers

# Response
{
  "circuitBreakers": {
    "paymentService": {
      "state": "CLOSED",
      "failureRate": "0.0%",
      "numberOfSuccessfulCalls": 45,
      "numberOfFailedCalls": 0
    }
  }
}

No more Hystrix Dashboard. Use Grafana + Prometheus with Resilience4j’s built-in Micrometer metrics instead.

Common Migration Problems

SymptomCauseFix
NoClassDefFoundError: ribbonSpring Cloud 2023+ removed RibbonAdd spring-cloud-starter-loadbalancer
@HystrixCommand not recognizedHystrix removedReplace with Resilience4j @CircuitBreaker
Feign calls fail after removing RibbonNo LoadBalancer on classpathAdd spring-cloud-starter-loadbalancer
Gateway returns 404Route predicates wrongCheck path matching (Gateway uses ant patterns)
Zuul filters don’t work in GatewayDifferent filter APIRewrite as GlobalFilter or GatewayFilter
Thread pool isolation goneResilience4j uses semaphore by defaultUse resilience4j.bulkhead for isolation
Hystrix stream endpoint missingRemoved with HystrixUse /actuator/circuitbreakers instead

Version Compatibility

Spring BootSpring CloudNetflix Support
2.7.x2021.xLast version with Netflix
3.0.x2022.xNetflix removed
3.2.x2023.xFully modern stack
3.5.x2024.xCurrent recommended

If you’re still on Spring Boot 2.7 — migrate to Boot 3.x first, then handle the Netflix removal as part of the same effort.

Checklist

  • Replace spring-cloud-starter-netflix-ribbon with spring-cloud-starter-loadbalancer
  • Replace @HystrixCommand with @CircuitBreaker + @Retry + @TimeLimiter
  • Move Hystrix config from annotations to resilience4j.* YAML
  • Replace Zuul dependency with spring-cloud-starter-gateway
  • Rewrite Zuul filters as GlobalFilter / GatewayFilter
  • Convert Zuul route config to Gateway route predicates
  • Add spring-cloud-starter-loadbalancer alongside OpenFeign
  • Remove Netflix BOM/dependency exclusions
  • Update Actuator health endpoint monitoring (Hystrix stream → CircuitBreaker actuator)
  • Update CI/CD dashboards (Hystrix metrics → Resilience4j Micrometer metrics)
  • Run integration tests against the new stack
  • Remove deprecated Netflix imports from all source files

References

Spring Boot, Microservices
spring-cloud netflix migration loadbalancer circuit-breaker resilience4j eureka spring-boot microservices
This post is licensed under CC BY 4.0 by the author.
