Spring Cloud Gateway + Micrometer Tracing with Brave — Distributed Tracing Step by Step

Introduction — Why Trace at the Gateway?

In a microservices architecture, a single user request can pass through 5, 10, or 20 services before a response comes back. When something is slow or broken, you need to answer: which service caused the problem?

That’s what distributed tracing solves. It assigns a unique trace ID to each incoming request and propagates it across every service in the chain. Each service creates a span (a timed operation within the trace), and together they form a complete picture of the request’s journey.

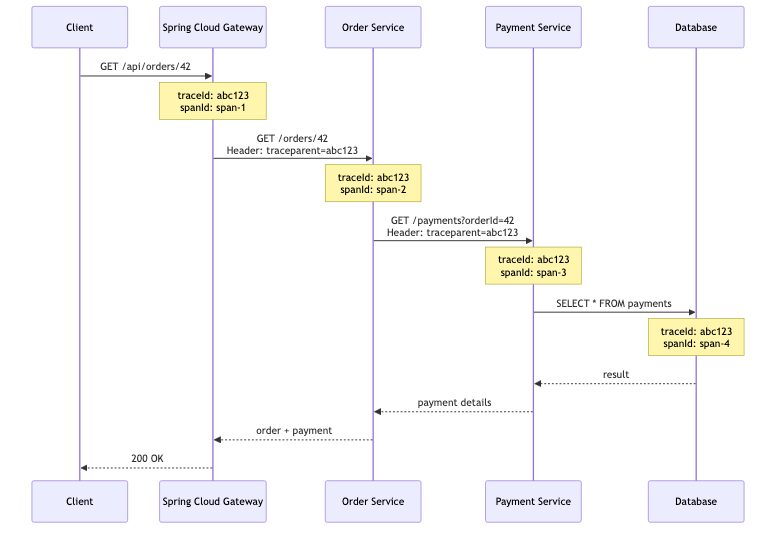

sequenceDiagram
    participant Client
    participant Gateway as Spring Cloud Gateway
    participant OrderSvc as Order Service
    participant PaymentSvc as Payment Service
    participant DB as Database

    Client->>Gateway: GET /api/orders/42
    Note over Gateway: traceId: abc123<br/>spanId: span-1

    Gateway->>OrderSvc: GET /orders/42<br/>Header: traceparent=abc123
    Note over OrderSvc: traceId: abc123<br/>spanId: span-2

    OrderSvc->>PaymentSvc: GET /payments?orderId=42<br/>Header: traceparent=abc123
    Note over PaymentSvc: traceId: abc123<br/>spanId: span-3

    PaymentSvc->>DB: SELECT * FROM payments
    Note over DB: traceId: abc123<br/>spanId: span-4

    DB-->>PaymentSvc: result
    PaymentSvc-->>OrderSvc: payment details
    OrderSvc-->>Gateway: order + payment
    Gateway-->>Client: 200 OK

The gateway is the natural place to start a trace because it’s the entry point for all traffic. If tracing isn’t set up here, you miss the first hop and lose visibility into gateway-level latency (routing time, filter execution, downstream connection establishment).

---

Prerequisites

Component	Version	Notes
Java	17+	Required for Spring Boot 3.x
Spring Boot	3.2+	Auto-configuration for Micrometer Tracing
Spring Cloud	2023.0+ (Leyton) or 2024.0+	Spring Cloud Gateway 4.x
Zipkin or Jaeger	Latest	For viewing traces

Spring Cloud Gateway is a reactive application built on Spring WebFlux + Project Reactor. Micrometer Tracing handles the reactive context propagation automatically — you don’t need to manually pass trace IDs through Mono/Flux chains.

---

Step 1: Add Dependencies

Maven

<properties>
    <spring-boot.version>3.3.0</spring-boot.version>
    <spring-cloud.version>2024.0.0</spring-cloud.version>
</properties>

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<dependencies>
    <!-- Spring Cloud Gateway (reactive) -->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-gateway</artifactId>
    </dependency>

    <!-- Micrometer Tracing facade + Brave bridge -->
    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-tracing-bridge-brave</artifactId>
    </dependency>

    <!-- Zipkin reporter for exporting spans -->
    <dependency>
        <groupId>io.zipkin.reporter2</groupId>
        <artifactId>zipkin-reporter-brave</artifactId>
    </dependency>

    <!-- Actuator for metrics and trace endpoints -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
</dependencies>

Gradle

ext {
    set('springCloudVersion', '2024.0.0')
}

dependencyManagement {
    imports {
        mavenBom "org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}"
    }
}

dependencies {
    implementation 'org.springframework.cloud:spring-cloud-starter-gateway'
    implementation 'io.micrometer:micrometer-tracing-bridge-brave'
    implementation 'io.zipkin.reporter2:zipkin-reporter-brave'
    implementation 'org.springframework.boot:spring-boot-starter-actuator'
}

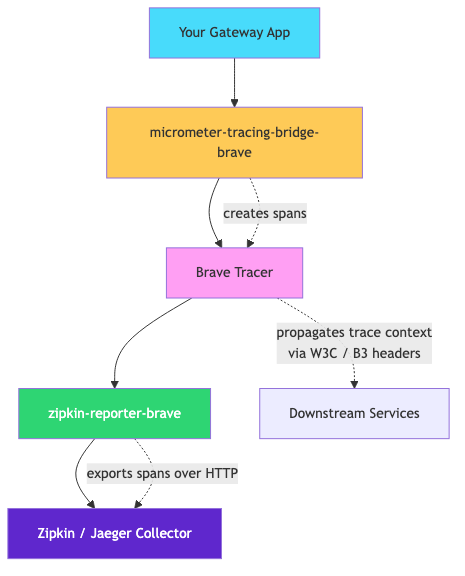

What Each Dependency Does

graph TD
    A[Your Gateway App] --> B[micrometer-tracing-bridge-brave]
    B --> C[Brave Tracer]
    C --> D[zipkin-reporter-brave]
    D --> E[Zipkin / Jaeger Collector]

    B -.->|"creates spans"| C
    C -.->|"propagates trace context<br/>via W3C / B3 headers"| F[Downstream Services]
    D -.->|"exports spans over HTTP"| E

    style A fill:#48dbfb,color:#333
    style B fill:#feca57,color:#333
    style C fill:#ff9ff3,color:#333
    style D fill:#2ed573,color:#fff
    style E fill:#5f27cd,color:#fff

Dependency	Role
spring-cloud-starter-gateway	The reactive API gateway itself
micrometer-tracing-bridge-brave	Bridges Micrometer’s tracing API to Brave (Zipkin’s tracing library)
zipkin-reporter-brave	Exports collected spans to a Zipkin-compatible backend (Zipkin, Jaeger, Tempo)
spring-boot-starter-actuator	Exposes health, metrics, and allows trace endpoint management

---

Step 2: Configure Application Properties

# application.yml
spring:
  application:
    name: api-gateway

  cloud:
    gateway:
      # Enable automatic trace ID propagation to downstream services
      # (enabled by default when tracing dependencies are on classpath)
      metrics:
        enabled: true

# Tracing configuration
management:
  tracing:
    sampling:
      probability: 1.0  # Sample 100% of requests (lower in production, e.g., 0.1 for 10%)
    propagation:
      type: W3C         # Use W3C Trace Context headers (traceparent/tracestate)
                        # Use B3 for legacy Zipkin compatibility

  # Zipkin exporter
  zipkin:
    tracing:
      endpoint: http://localhost:9411/api/v2/spans  # Zipkin collector URL

  # Expose actuator endpoints
  endpoints:
    web:
      exposure:
        include: health,metrics,prometheus

# Logging pattern with trace and span IDs
logging:
  pattern:
    level: "%5p [${spring.application.name},%X{traceId:-},%X{spanId:-}]"

Key Configuration Explained

Property	Purpose
management.tracing.sampling.probability	Controls what percentage of requests are traced. 1.0 = all, 0.1 = 10%
management.tracing.propagation.type	Header format for propagating trace context. W3C (modern) or B3 (Zipkin legacy)
management.zipkin.tracing.endpoint	Where to send spans. Works with Zipkin, Jaeger (with Zipkin collector enabled), or Grafana Tempo
logging.pattern.level	Adds traceId and spanId to every log line for correlation

For Jaeger Instead of Zipkin

Jaeger supports Zipkin’s span format via its collector. Just point the endpoint to Jaeger’s Zipkin-compatible port:

management:
  zipkin:
    tracing:
      endpoint: http://localhost:14268/api/traces  # Jaeger Zipkin collector

Or if running Jaeger with OTLP, consider switching to the OpenTelemetry bridge instead.

---

Step 3: Sample Route Definition

Define your gateway routes in YAML. Each route proxies requests to a downstream service, and tracing headers are automatically injected into the forwarded request.

# application.yml (continued)
spring:
  cloud:
    gateway:
      routes:
        - id: order-service
          uri: http://localhost:8081
          predicates:
            - Path=/api/orders/**
          filters:
            - StripPrefix=1
            - name: CircuitBreaker
              args:
                name: orderServiceCB
                fallbackUri: forward:/fallback/orders

        - id: payment-service
          uri: http://localhost:8082
          predicates:
            - Path=/api/payments/**
          filters:
            - StripPrefix=1

        - id: inventory-service
          uri: http://localhost:8083
          predicates:
            - Path=/api/inventory/**
          filters:
            - StripPrefix=1
            - name: Retry
              args:
                retries: 3
                statuses: BAD_GATEWAY,SERVICE_UNAVAILABLE

      default-filters:
        - DedupeResponseHeader=Access-Control-Allow-Origin

What Happens at Runtime

flowchart LR
    A[Client Request<br/>GET /api/orders/42] --> B[Gateway]

    subgraph Gateway Processing
        B --> C[Route Matching<br/>Path=/api/orders/**]
        C --> D[Filter Chain<br/>StripPrefix, CircuitBreaker]
        D --> E[Inject Trace Headers<br/>traceparent: 00-abc123-span1-01]
    end

    E --> F[Order Service<br/>http://localhost:8081/orders/42]

    style B fill:#48dbfb,color:#333
    style E fill:#feca57,color:#333
    style F fill:#2ed573,color:#fff

The gateway automatically:

1. Creates a span for the incoming request
2. Injects trace headers (traceparent for W3C, or X-B3-TraceId for B3) into the outbound request
3. Records timing — how long routing + downstream call took
4. Exports the span to Zipkin/Jaeger

---

Step 4: Java Configuration (Optional Customization)

The auto-configuration handles most cases, but you can customize propagation and span naming:

Custom Propagation Configuration

import brave.propagation.B3Propagation;
import brave.propagation.Propagation;
import io.micrometer.tracing.brave.bridge.BraveBaggageManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class TracingConfig {

    /**
     * Use B3 multi-header propagation for backward compatibility
     * with older services that don't support W3C Trace Context.
     */
    @Bean
    public Propagation.Factory propagationFactory() {
        return B3Propagation.newFactoryBuilder()
                .injectFormat(B3Propagation.Format.MULTI) // X-B3-TraceId, X-B3-SpanId, X-B3-Sampled
                .build();
    }
}

Custom Gateway Filter for Span Tags

import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import io.micrometer.observation.Observation;
import io.micrometer.observation.contextpropagation.ObservationThreadLocalAccessor;
import reactor.core.publisher.Mono;

@Component
public class TraceEnrichmentFilter implements GlobalFilter, Ordered {

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        // Add custom tags to the current span for better searchability in Zipkin/Jaeger
        Observation currentObservation = exchange.getAttribute(ObservationThreadLocalAccessor.KEY);

        if (currentObservation != null) {
            String routeId = exchange.getAttribute("org.springframework.cloud.gateway.support.ServerWebExchangeUtils.gatewayRouteAttr") != null
                    ? exchange.getAttribute("org.springframework.cloud.gateway.support.ServerWebExchangeUtils.gatewayRouteAttr").toString()
                    : "unknown";

            currentObservation.lowCardinalityKeyValue("gateway.route.id", routeId);
            currentObservation.highCardinalityKeyValue("gateway.request.path", exchange.getRequest().getPath().value());
        }

        return chain.filter(exchange);
    }

    @Override
    public int getOrder() {
        return Ordered.HIGHEST_PRECEDENCE + 10; // Run early in the filter chain
    }
}

Baggage Propagation (Pass Custom Values Across Services)

import io.micrometer.tracing.BaggageInScope;
import io.micrometer.tracing.Tracer;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

@Component
public class BaggagePropagationFilter implements GlobalFilter {

    private final Tracer tracer;

    public BaggagePropagationFilter(Tracer tracer) {
        this.tracer = tracer;
    }

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        // Extract tenant ID from header and propagate it as baggage across all services
        String tenantId = exchange.getRequest().getHeaders().getFirst("X-Tenant-ID");

        if (tenantId != null) {
            try (BaggageInScope baggage = tracer.createBaggageInScope("tenant.id", tenantId)) {
                return chain.filter(exchange);
            }
        }

        return chain.filter(exchange);
    }
}

Enable baggage propagation in configuration:

management:
  tracing:
    baggage:
      remote-fields:
        - X-Tenant-ID
      correlation:
        fields:
          - tenant.id

---

Step 5: Verification

Start Zipkin Locally

# Docker (easiest)
docker run -d -p 9411:9411 openzipkin/zipkin

# Or download and run the JAR
curl -sSL https://zipkin.io/quickstart.sh | bash -s
java -jar zipkin.jar

Start Jaeger (Alternative)

docker run -d \
  -p 16686:16686 \    # Jaeger UI
  -p 14268:14268 \    # Zipkin-compatible collector
  jaegertracing/all-in-one:latest

Send a Test Request

# Send a request through the gateway
curl -v http://localhost:8080/api/orders/42

What You Should See

1. In your gateway logs:

INFO [api-gateway,abc123def456,span1a2b3c4d] --- Routing to order-service

The trace ID (abc123def456) and span ID (span1a2b3c4d) appear in every log line.

2. In the downstream service logs:

INFO [order-service,abc123def456,span5e6f7g8h] --- Handling GET /orders/42

Same trace ID, different span ID — proving context propagated correctly.

3. In response headers (optional — add a filter to expose them):

@Component
public class TraceResponseHeaderFilter implements GlobalFilter, Ordered {

    private final Tracer tracer;

    public TraceResponseHeaderFilter(Tracer tracer) {
        this.tracer = tracer;
    }

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        return chain.filter(exchange).then(Mono.fromRunnable(() -> {
            var span = tracer.currentSpan();
            if (span != null) {
                exchange.getResponse().getHeaders()
                    .add("X-Trace-Id", span.context().traceId());
            }
        }));
    }

    @Override
    public int getOrder() {
        return Ordered.LOWEST_PRECEDENCE;
    }
}

Now every response includes the trace ID:

< X-Trace-Id: abc123def456789

Clients can use this to search for their specific request in Zipkin/Jaeger.

4. In Zipkin UI:

Open http://localhost:9411 and search by service name api-gateway. You’ll see:

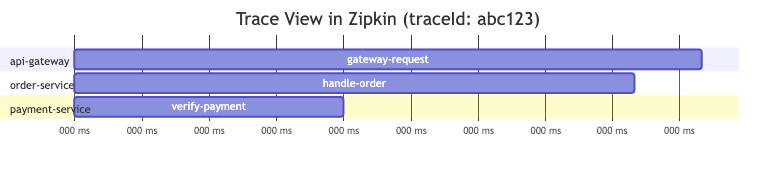

gantt
    title Trace View in Zipkin (traceId: abc123)
    dateFormat X
    axisFormat %L ms

    section api-gateway
    gateway-request           :0, 280

    section order-service
    handle-order              :15, 250

    section payment-service
    verify-payment            :30, 120

Each span shows its duration, service name, and relationship to parent spans.

---

Production Considerations

Sampling Strategy

Don’t trace 100% of traffic in production — it’s expensive (network, storage, processing):

management:
  tracing:
    sampling:
      probability: 0.1  # 10% of requests — enough for troubleshooting

For important operations, use programmatic sampling:

@Component
public class PrioritySamplingFilter implements GlobalFilter {

    private final Tracer tracer;

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        // Always trace admin and health-check paths
        String path = exchange.getRequest().getPath().value();
        if (path.startsWith("/api/admin") || path.contains("/health")) {
            // Force sampling for critical paths
            // (implementation depends on your sampler configuration)
        }
        return chain.filter(exchange);
    }
}

Performance Overhead

Sampling Rate	Throughput Impact	Storage (per 1M requests)
100%	~3-5%	~5GB
10%	< 1%	~500MB
1%	Negligible	~50MB

Trace ID in Error Responses

Include trace IDs in error responses so users can reference them in support tickets:

@RestController
public class FallbackController {

    private final Tracer tracer;

    public FallbackController(Tracer tracer) {
        this.tracer = tracer;
    }

    @GetMapping("/fallback/orders")
    public ResponseEntity<Map<String, Object>> orderFallback() {
        String traceId = tracer.currentSpan() != null
                ? tracer.currentSpan().context().traceId()
                : "unknown";

        return ResponseEntity.status(HttpStatus.SERVICE_UNAVAILABLE)
                .body(Map.of(
                    "error", "Order service is temporarily unavailable",
                    "traceId", traceId,
                    "timestamp", Instant.now()
                ));
    }
}

---

Full Application Structure

api-gateway/
├── src/main/java/com/myapp/gateway/
│   ├── GatewayApplication.java
│   ├── config/
│   │   └── TracingConfig.java
│   ├── filter/
│   │   ├── TraceEnrichmentFilter.java
│   │   ├── TraceResponseHeaderFilter.java
│   │   └── BaggagePropagationFilter.java
│   └── fallback/
│       └── FallbackController.java
├── src/main/resources/
│   └── application.yml
└── pom.xml

---

Troubleshooting

Symptom	Cause	Fix
No traces in Zipkin	Zipkin endpoint wrong or service not running	Verify management.zipkin.tracing.endpoint and check Docker logs
Trace ID not in logs	Logging pattern missing MDC keys	Add %X{traceId:-},%X{spanId:-} to logging pattern
Trace breaks between services	Downstream service not reading propagation headers	Ensure downstream also has micrometer-tracing-bridge-brave dependency
All spans show 0ms duration	Reactive context not propagating	Upgrade to Spring Boot 3.2+ (fixes Reactor context propagation)
High memory usage	100% sampling in production	Lower sampling.probability to 0.05-0.1

---

References

• Spring Boot Tracing Documentation
• Micrometer Tracing — Supported Reporters
• Spring Cloud Gateway Documentation
• Brave GitHub — Propagation Formats
• Zipkin Quickstart
• Spring Guides — Building a Gateway

Tracing is observability’s third pillar alongside metrics and logs. When all three share the same trace ID, you can jump from a latency spike in Grafana → to the slow span in Zipkin → to the exact error log line. That’s the power of correlated observability.
