Caching Strategies with Spring Boot — Redis, Caffeine, and Multi-Level

The Problem

You have a product catalog service. A single findById query takes 200ms because it joins five tables, runs through business logic, and formats the response. Now multiply that by 1000 requests per minute — that’s 200 seconds of CPU time every minute for the exact same result.

Caching is the most effective performance optimization you can apply when data is read far more often than it’s written. In this post, we’ll build a multi-level caching solution with Spring Boot that reduces those 200ms reads to sub-millisecond responses.

We’ll cover:

• In-memory caching with Caffeine
• Distributed caching with Redis
• Multi-level caching combining both
• The annotations that make it all work
• Production pitfalls that will bite you

---

Caching Patterns

Before writing code, let’s understand the three primary caching patterns.

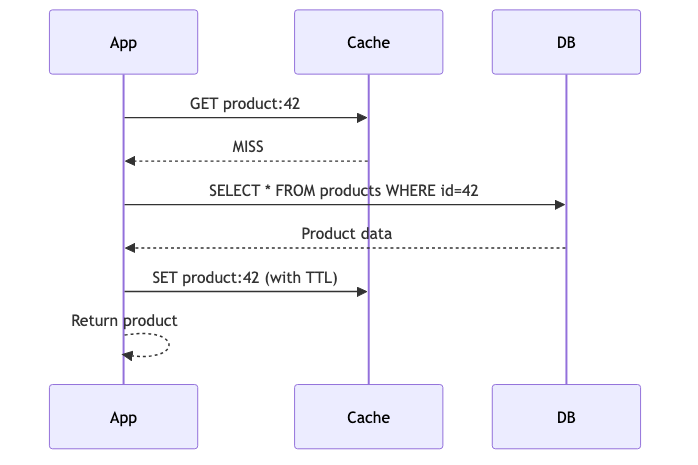

Cache-Aside (Lazy Loading)

The application checks the cache first. On a miss, it fetches from the database and stores the result in cache.

sequenceDiagram
    participant App
    participant Cache
    participant DB

    App->>Cache: GET product:42
    Cache-->>App: MISS
    App->>DB: SELECT * FROM products WHERE id=42
    DB-->>App: Product data
    App->>Cache: SET product:42 (with TTL)
    App-->>App: Return product

Pros: Only requested data is cached. Cache failures don’t break reads. Cons: First request is always slow (cold cache). Possible stale reads.

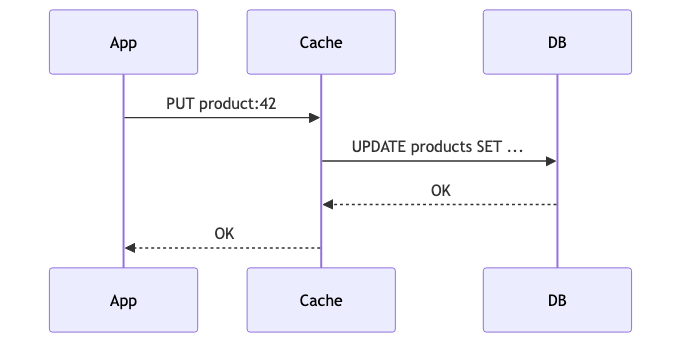

Write-Through

Every write goes to both cache and database synchronously.

sequenceDiagram
    participant App
    participant Cache
    participant DB

    App->>Cache: PUT product:42
    Cache->>DB: UPDATE products SET ...
    DB-->>Cache: OK
    Cache-->>App: OK

Pros: Cache is always consistent. No stale reads. Cons: Write latency increases. Unused data may fill the cache.

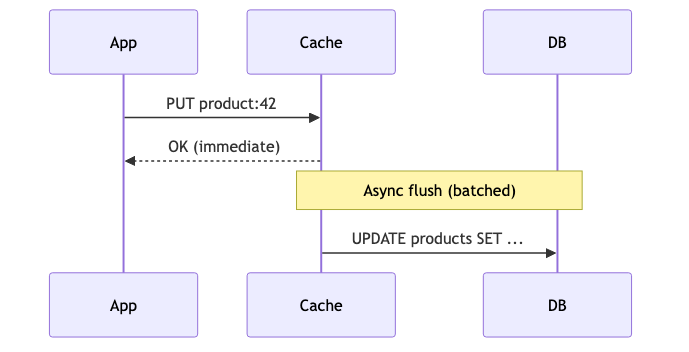

Write-Behind (Write-Back)

Writes go to the cache immediately and are asynchronously flushed to the database.

sequenceDiagram
    participant App
    participant Cache
    participant DB

    App->>Cache: PUT product:42
    Cache-->>App: OK (immediate)
    Note over Cache,DB: Async flush (batched)
    Cache->>DB: UPDATE products SET ...

Pros: Fastest writes. Batch writes reduce DB load. Cons: Risk of data loss if cache crashes before flush.

---

Step 1: Simple Caching with Caffeine

Caffeine is the highest-performing in-memory cache for Java. It uses a W-TinyLFU eviction policy that outperforms LRU in most workloads.

Dependencies

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-cache</artifactId>
</dependency>
<dependency>
    <groupId>com.github.ben-manes.caffeine</groupId>
    <artifactId>caffeine</artifactId>
</dependency>

Enable Caching

@SpringBootApplication
@EnableCaching
public class CachingApplication {
    public static void main(String[] args) {
        SpringApplication.run(CachingApplication.class, args);
    }
}

Configure Caffeine

@Bean
@Primary
public CacheManager caffeineCacheManager() {
    CaffeineCacheManager cacheManager = new CaffeineCacheManager("products", "productList");
    cacheManager.setCaffeine(Caffeine.newBuilder()
            .maximumSize(500)
            .expireAfterWrite(60, TimeUnit.SECONDS)
            .recordStats());
    return cacheManager;
}

Key settings:

• maximumSize(500) — Evicts least-valuable entries when full
• expireAfterWrite(60s) — Entries expire 60 seconds after creation
• recordStats() — Enables hit/miss metrics (useful for monitoring)

Use @Cacheable

@Cacheable(value = "products", key = "#id")
public Product findById(Long id) {
    log.info("Cache MISS — fetching product {} from database", id);
    simulateDatabaseDelay();
    return database.get(id);
}

First call: 200ms (database). Subsequent calls: <1ms (memory).

---

Step 2: Distributed Caching with Redis

Caffeine is fast but local to a single JVM. When you scale to multiple instances, each has its own cache — leading to inconsistency and redundant database calls.

Redis solves this by providing a shared, network-accessible cache.

Dependencies

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

Redis Configuration

spring:
  data:
    redis:
      host: localhost
      port: 6379
      timeout: 2000ms
      lettuce:
        pool:
          max-active: 10
          max-idle: 5
          min-idle: 2

Redis CacheManager

@Bean
public CacheManager redisCacheManager(RedisConnectionFactory connectionFactory) {
    RedisCacheConfiguration config = RedisCacheConfiguration.defaultCacheConfig()
            .entryTtl(Duration.ofMinutes(10))
            .serializeValuesWith(
                    RedisSerializationContext.SerializationPair
                            .fromSerializer(new GenericJackson2JsonRedisSerializer()))
            .disableCachingNullValues();

    return RedisCacheManager.builder(connectionFactory)
            .cacheDefaults(config)
            .withCacheConfiguration("products",
                    config.entryTtl(Duration.ofMinutes(10)))
            .withCacheConfiguration("productList",
                    config.entryTtl(Duration.ofMinutes(5)))
            .build();
}

Redis gives you:

• Shared state across all instances
• Persistence — cache survives app restarts
• Larger capacity — not limited by JVM heap

The trade-off: every cache read/write is a network call (~1-2ms vs <1μs for Caffeine).

---

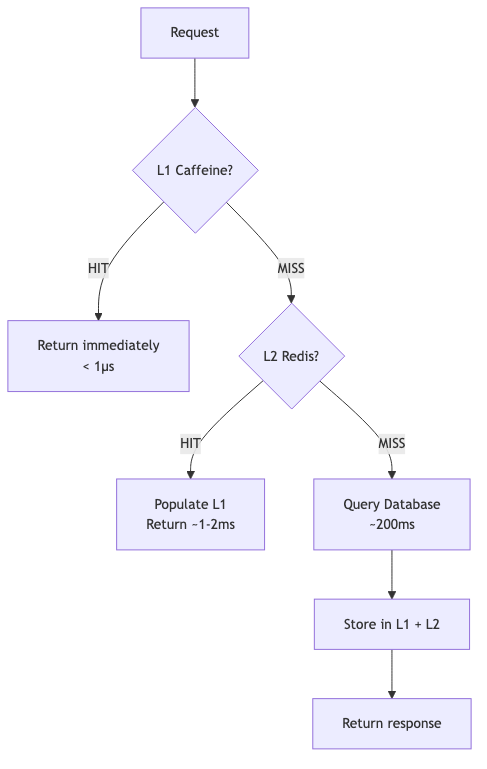

Step 3: Multi-Level Caching (Caffeine L1 + Redis L2)

The optimal architecture combines both: Caffeine as L1 (fast, local) and Redis as L2 (shared, durable).

flowchart TD
    A[Request] --> B{L1 Caffeine?}
    B -->|HIT| C[Return immediately<br/>< 1μs]
    B -->|MISS| D{L2 Redis?}
    D -->|HIT| E[Populate L1<br/>Return ~1-2ms]
    D -->|MISS| F[Query Database<br/>~200ms]
    F --> G[Store in L1 + L2]
    G --> H[Return response]

How It Works

1. Request arrives — Check Caffeine (L1) first
2. L1 HIT — Return immediately, no network call
3. L1 MISS — Check Redis (L2)
4. L2 HIT — Populate L1 with the value, return
5. L2 MISS — Hit the database, store in both L1 and L2

Implementation Strategy

Spring’s @Cacheable doesn’t natively support multi-level caching with a single annotation. You have two options:

Option A: Use @Primary on Caffeine and fall through to Redis manually:

@Service
public class ProductService {

    private final CacheManager caffeineCacheManager;
    private final CacheManager redisCacheManager;

    @Cacheable(value = "products", key = "#id", cacheManager = "caffeineCacheManager")
    public Product findById(Long id) {
        // L1 miss — try L2
        Cache redisCache = redisCacheManager.getCache("products");
        if (redisCache != null) {
            Cache.ValueWrapper cached = redisCache.get(id);
            if (cached != null) {
                return (Product) cached.get();
            }
        }
        // L2 miss — hit database
        Product product = fetchFromDatabase(id);
        if (redisCache != null && product != null) {
            redisCache.put(id, product);
        }
        return product;
    }
}

Option B: Use a CompositeCacheManager that checks caches in order:

@Bean
public CacheManager cacheManager(CacheManager caffeineCacheManager,
                                  CacheManager redisCacheManager) {
    CompositeCacheManager composite = new CompositeCacheManager();
    composite.setCacheManagers(List.of(caffeineCacheManager, redisCacheManager));
    composite.setFallbackToNoOpCache(false);
    return composite;
}

Option A gives more control over L1↔L2 promotion. Option B is simpler but less flexible.

---

@Cacheable, @CacheEvict, @CachePut — When to Use Which

Annotation	Behavior	Use Case
@Cacheable	Returns cached value on HIT; executes method on MISS	Read operations, expensive queries
@CachePut	Always executes method, updates cache with result	Write/update operations where cache must stay fresh
@CacheEvict	Removes entry from cache	Delete operations, data invalidation
@Caching	Combines multiple cache operations	Complex operations touching multiple caches

@Cacheable — Read-Through

@Cacheable(value = "products", key = "#id")
public Product findById(Long id) { ... }

The method body only executes on a cache miss. The return value is stored in cache.

@CachePut — Write and Refresh

@CachePut(value = "products", key = "#result.id()")
@CacheEvict(value = "productList", key = "'allProducts'")
public Product save(Product product) { ... }

Always executes the method. Updates the products cache with the new value. Also evicts the product list since it’s now stale.

@CacheEvict — Invalidate

@CacheEvict(value = "products", key = "#id")
public void delete(Long id) { ... }

Removes the cache entry. Next read will go to the database.

Evict Everything

@CacheEvict(value = "products", allEntries = true)
@Scheduled(fixedRate = 3600000) // every hour
public void evictAllProducts() {
    log.info("Evicting all product cache entries");
}

---

TTL Strategies

Fixed TTL

The simplest approach. Every entry expires after a fixed duration.

.expireAfterWrite(60, TimeUnit.SECONDS)  // Caffeine
.entryTtl(Duration.ofMinutes(10))         // Redis

Good for: product catalogs, configuration data, reference data.

Sliding Window (Expire After Access)

The TTL resets every time the entry is read.

Caffeine.newBuilder()
    .expireAfterAccess(5, TimeUnit.MINUTES)

Good for: user sessions, frequently accessed hot data.

Cache Warming

Pre-load critical data at startup to avoid cold-cache latency spikes.

@Component
public class CacheWarmer implements ApplicationRunner {

    private final ProductService productService;

    @Override
    public void run(ApplicationArguments args) {
        log.info("Warming product cache...");
        productService.findAll(); // Triggers @Cacheable population
    }
}

TTL Guidelines

Data Type	Suggested TTL	Reasoning
Static reference data	1-24 hours	Rarely changes
Product catalog	5-15 minutes	Moderate change frequency
User session data	30 min sliding	Reset on activity
Pricing / inventory	30-60 seconds	High change frequency
Real-time data	Don’t cache	Stale data is wrong data

---

Cache Key Design

Spring uses SpEL (Spring Expression Language) for cache keys.

Basic Key

@Cacheable(value = "products", key = "#id")
public Product findById(Long id) { ... }
// Key: products::42

Composite Key

@Cacheable(value = "products", key = "#category + ':' + #page")
public List<Product> findByCategory(String category, int page) { ... }
// Key: products::Electronics:0

Object Property Key

@Cacheable(value = "products", key = "#filter.category + ':' + #filter.minPrice")
public List<Product> search(ProductFilter filter) { ... }

Custom KeyGenerator

For complex scenarios, implement a KeyGenerator:

@Bean
public KeyGenerator productKeyGenerator() {
    return (target, method, params) -> {
        StringBuilder sb = new StringBuilder();
        sb.append(method.getName()).append(":");
        for (Object param : params) {
            sb.append(param.toString()).append(":");
        }
        return sb.toString();
    };
}

Usage:

@Cacheable(value = "products", keyGenerator = "productKeyGenerator")
public List<Product> complexSearch(String q, String sort, int page) { ... }

Key Design Best Practices

• Keep keys short — they consume memory in Redis
• Include only fields that affect the result
• Avoid using mutable objects as keys
• Use a consistent prefix/namespace to avoid collisions

---

Common Pitfalls

Pitfall	What Happens	Solution
Self-invocation	Calling a @Cacheable method from within the same class bypasses the proxy	Inject the service into itself, or extract to a separate class
Mutable cached objects	Caller modifies the cached object, corrupting future reads	Use records/immutable objects, or return defensive copies
Missing Serializable	Redis can’t serialize the object	Implement Serializable or use a JSON serializer
Null values	Null results get cached, masking future writes	Use unless = "#result == null" or disableCachingNullValues()
Large objects	Serializing huge objects adds latency	Cache IDs/summaries, not full aggregates
No TTL	Stale data served indefinitely	Always set a TTL, even a long one
Cache stampede	Multiple threads hit DB simultaneously on expiry	Use sync = true on @Cacheable
Inconsistent eviction	Update DB but forget to evict cache	Use @CachePut + @CacheEvict together

Self-Invocation Fix

// BROKEN — cache is bypassed
@Service
public class ProductService {
    public Product getProduct(Long id) {
        return findById(id); // direct call, no proxy!
    }

    @Cacheable("products")
    public Product findById(Long id) { ... }
}

// FIXED — use self-injection
@Service
public class ProductService {
    @Autowired
    private ProductService self;

    public Product getProduct(Long id) {
        return self.findById(id); // goes through proxy
    }
}

Cache Stampede Prevention

@Cacheable(value = "products", key = "#id", sync = true)
public Product findById(Long id) { ... }

With sync = true, only one thread executes the method on a cache miss. Others wait for the result.

---

Full Working Example

The complete source code is available on GitHub:

github.com/AnupamSinha/spring-boot-examples/tree/main/15-caching

Running Locally

# Start Redis
docker compose up -d

# Run the application
./mvnw spring-boot:run

Testing the Cache

# First call — 200ms (cache miss)
curl -w "\nTime: %{time_total}s\n" http://localhost:8080/api/products/1

# Second call — <5ms (cache hit)
curl -w "\nTime: %{time_total}s\n" http://localhost:8080/api/products/1

# Update — triggers cache refresh
curl -X PUT http://localhost:8080/api/products/1 \
  -H "Content-Type: application/json" \
  -d '{"name":"MacBook Pro 14\"","price":1999.99,"category":"Electronics"}'

# Next read reflects the update immediately
curl http://localhost:8080/api/products/1

Project Structure

spring-boot-caching/
├── docker-compose.yml
├── pom.xml
└── src/main/java/com/anupam/caching/
    ├── CachingApplication.java
    ├── config/
    │   └── CacheConfig.java
    ├── controller/
    │   └── ProductController.java
    ├── model/
    │   └── Product.java
    └── service/
        └── ProductService.java

---

References

• Spring Framework Cache Abstraction
• Caffeine GitHub — High performance caching library
• Spring Data Redis Reference
• Caffeine W-TinyLFU Paper
• Redis Documentation
