Spring Boot + Elasticsearch — Full-Text Search Done Right

The Problem: Why SQL LIKE Doesn’t Scale

Every application eventually needs search. The first instinct is WHERE title LIKE '%keyword%'. It works for a few hundred rows but falls apart quickly:

Issue	SQL LIKE	Elasticsearch
Performance on 1M+ rows	Full table scan — seconds	Inverted index — milliseconds
Typo tolerance	None	Fuzzy matching built-in
Relevance scoring	None — binary match	TF-IDF / BM25 scoring
Multi-field search	Manual UNION logic	Multi-match with field boosting
Aggregations	GROUP BY — limited	Native facets, histograms
Highlighting	Manual string ops	Built-in <em> wrapping

If your users type “elastcsearch” (typo) and expect results, you need a real search engine.

---

What is Elasticsearch?

Elasticsearch is a distributed search and analytics engine built on Apache Lucene. It stores data as JSON documents and builds an inverted index — a mapping from every term to the documents that contain it.

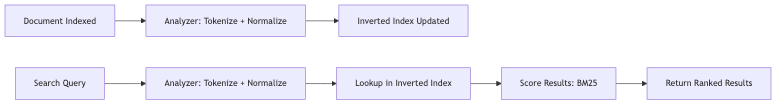

flowchart LR
    A[Document Indexed] --> B[Analyzer: Tokenize + Normalize]
    B --> C[Inverted Index Updated]
    D[Search Query] --> E[Analyzer: Tokenize + Normalize]
    E --> F[Lookup in Inverted Index]
    F --> G[Score Results: BM25]
    G --> H[Return Ranked Results]

When you index “Spring Boot Elasticsearch Tutorial”:

• Tokenizer splits into: [spring, boot, elasticsearch, tutorial]
• Each token maps to the document ID
• A search for “elasticsearch” instantly finds the document via the index

---

Setup: Docker Compose

We run Elasticsearch 8.14 as a single node with security disabled for development:

version: '3.8'

services:
  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch:8.14.0
    container_name: elasticsearch
    environment:
      - discovery.type=single-node
      - xpack.security.enabled=false
      - xpack.security.http.ssl.enabled=false
      - ES_JAVA_OPTS=-Xms512m -Xmx512m
    ports:
      - "9200:9200"
    volumes:
      - es_data:/usr/share/elasticsearch/data
    healthcheck:
      test: ["CMD-SHELL", "curl -f http://localhost:9200/_cluster/health || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 10

volumes:
  es_data:
    driver: local

Start it:

docker-compose up -d
curl http://localhost:9200  # verify it's running

---

Dependencies

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-elasticsearch</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

Configuration in application.yml:

spring:
  elasticsearch:
    uris: http://localhost:9200

---

Document Mapping: @Document and @Field

Elasticsearch documents map to Java classes with annotations:

@Document(indexName = "articles")
public class Article {

    @Id
    private String id;

    @Field(type = FieldType.Text, analyzer = "standard")
    private String title;

    @Field(type = FieldType.Text, analyzer = "standard")
    private String content;

    @Field(type = FieldType.Keyword)
    private String author;

    @Field(type = FieldType.Keyword)
    private List<String> tags;

    @Field(type = FieldType.Date, format = DateFormat.date)
    private LocalDate publishedAt;
}

Key field types:

FieldType	Use Case	Analyzed?	Exact Match?
Text	Full-text searchable content	Yes	No
Keyword	Filtering, sorting, aggregations	No	Yes
Date	Date range queries	No	Yes
Integer/Long	Numeric range queries	No	Yes

Text fields are analyzed (tokenized + normalized) for full-text search. Keyword fields are stored as-is for exact match, sorting, and aggregations.

---

ElasticsearchRepository: Derived Queries

Spring Data Elasticsearch provides repository support just like Spring Data JPA:

@Repository
public interface ArticleRepository extends ElasticsearchRepository<Article, String> {

    List<Article> findByAuthor(String author);

    List<Article> findByTagsContaining(String tag);
}

Derived query methods work the same way you know from JPA — the method name is parsed into an Elasticsearch query.

---

Custom Queries with @Query

For real search functionality, use the @Query annotation with native Elasticsearch JSON:

@Query("""
    {
      "multi_match": {
        "query": "?0",
        "fields": ["title^3", "content"],
        "type": "best_fields"
      }
    }
    """)
List<Article> searchByTitleAndContent(String query);

The ^3 boosts title matches — a match in the title is weighted 3x higher than content.

Fuzzy Matching

Handle typos with fuzziness:

@Query("""
    {
      "multi_match": {
        "query": "?0",
        "fields": ["title^3", "content"],
        "fuzziness": "AUTO"
      }
    }
    """)
List<Article> fuzzySearch(String query);

fuzziness: AUTO uses edit distance based on term length:

• 1-2 characters: exact match
• 3-5 characters: 1 edit allowed
• 6+ characters: 2 edits allowed

Compound Query: Bool with Filters

@Query("""
    {
      "bool": {
        "must": [
          { "multi_match": { "query": "?0", "fields": ["title^3", "content"] } }
        ],
        "filter": [
          { "term": { "author": "?1" } }
        ]
      }
    }
    """)
List<Article> searchByQueryAndAuthor(String query, String author);

The must clause scores results, while filter narrows without affecting score — more efficient for exact-match conditions.

---

Full-Text Search with Relevance Scoring

Elasticsearch uses the BM25 algorithm (an evolution of TF-IDF) to score documents:

• Term Frequency (TF): How often the term appears in the document
• Inverse Document Frequency (IDF): How rare the term is across all documents
• Field Length Normalization: Shorter fields get a boost (a match in a 5-word title > a match in a 5000-word body)

The result: documents are ranked by how relevant they are, not just whether they match.

---

Highlighting: Wrap Matches in Tags

Show users exactly which part of the text matched:

public List<SearchHit<Article>> searchWithHighlighting(String query) {
    var highlightFields = List.of(
            new HighlightField("title"),
            new HighlightField("content")
    );
    var highlight = new Highlight(highlightFields);

    NativeQuery searchQuery = NativeQuery.builder()
            .withQuery(q -> q.multiMatch(m -> m
                    .query(query)
                    .fields("title^3", "content")))
            .withHighlightQuery(new HighlightQuery(highlight, Article.class))
            .build();

    SearchHits<Article> searchHits = elasticsearchOperations.search(searchQuery, Article.class);
    return searchHits.getSearchHits();
}

The response includes highlight fragments:

{
  "content": { ... },
  "highlightFields": {
    "title": ["Getting Started with <em>Elasticsearch</em>"],
    "content": ["<em>Elasticsearch</em> is a distributed search engine..."]
  }
}

---

Aggregations: Analytics on Your Data

Aggregations let you compute summaries without fetching documents.

Articles Per Author (Terms Aggregation)

public Map<String, Long> getArticlesPerAuthor() {
    NativeQuery query = NativeQuery.builder()
            .withAggregation("authors",
                    Aggregation.of(a -> a.terms(t -> t.field("author").size(50))))
            .withMaxResults(0)  // we don't need documents, just aggregation
            .build();

    SearchHits<Article> searchHits = elasticsearchOperations.search(query, Article.class);
    Map<String, Long> authorCounts = new HashMap<>();

    ElasticsearchAggregations aggregations =
            (ElasticsearchAggregations) searchHits.getAggregations();
    var authorAgg = aggregations.aggregations().get(0).aggregation().getAggregate();
    List<StringTermsBucket> buckets = authorAgg.sterms().buckets().array();
    for (StringTermsBucket bucket : buckets) {
        authorCounts.put(bucket.key().stringValue(), bucket.docCount());
    }

    return authorCounts;
}

Tag Cloud (Terms Aggregation)

public Map<String, Long> getTagCloud() {
    NativeQuery query = NativeQuery.builder()
            .withAggregation("tags",
                    Aggregation.of(a -> a.terms(t -> t.field("tags").size(100))))
            .withMaxResults(0)
            .build();

    // ... similar extraction logic
}

---

Indexing Strategies

Bulk Indexing

For initial data loads, use bulk operations:

public List<Article> saveAll(List<Article> articles) {
    return (List<Article>) articleRepository.saveAll(articles);
}

Under the hood, Spring Data Elasticsearch uses the Bulk API — much faster than individual saves.

Async Indexing

For production, consider async indexing to avoid blocking request threads:

@Async
public CompletableFuture<Article> saveAsync(Article article) {
    Article saved = articleRepository.save(article);
    return CompletableFuture.completedFuture(saved);
}

Index Aliases and Zero-Downtime Reindexing

For production deployments, use index aliases:

1. Create articles-v2 with updated mapping
2. Reindex data from articles-v1 to articles-v2
3. Switch the articles alias to point to articles-v2
4. Delete articles-v1

No downtime. No code changes.

---

Elasticsearch vs Database LIKE: Full Comparison

Feature	SQL LIKE	Elasticsearch
Query	WHERE title LIKE '%term%'	multi_match with BM25
Index usage	None (full scan)	Inverted index
Latency (1M docs)	500ms–5s	5–50ms
Fuzzy/typo	Not supported	Built-in
Relevance ranking	None	BM25 scoring
Facets/aggregations	Expensive GROUP BY	Native, sub-second
Highlighting	Manual	Built-in
Scaling	Vertical only	Horizontal (shards)
Maintenance	Zero	Cluster management

---

Common Problems

Problem	Cause	Solution
No results for known data	Text field queried as keyword	Check mapping — use Text for searchable fields
Keyword field not searchable	Field mapped as Keyword	Keyword is exact-match only; use Text for full-text
Slow indexing	Single-document inserts	Use bulk API
Stale search results	Near-real-time delay (1s default)	Call refresh API or accept 1s delay
OOM on large result sets	Fetching too many docs	Use pagination (from/size)
Score 0.0 on filter queries	Using filter context	filter doesn’t score — use must for scoring

---

Full Working Example

The complete implementation is available on GitHub:

spring-boot-examples/33-elasticsearch

Clone and run:

git clone https://github.com/AnupamSinha/spring-boot-examples.git
cd spring-boot-examples/33-elasticsearch
docker-compose up -d
./mvnw spring-boot:run

---

References

• Spring Data Elasticsearch Documentation
• Elasticsearch Reference — Query DSL
• Elasticsearch Reference — Aggregations
• BM25 Scoring Explained
