Real-Time Data Pipelines with Spring Boot + Kafka Streams

The Problem: Batch Is Too Slow, Consumers Are Stateless

Traditional Kafka consumers process messages one at a time. They’re great for fire-and-forget tasks but fall apart when you need:

• Counting events over time windows (e.g., payments per minute per currency)
• Joining data from multiple topics in real-time
• Maintaining running aggregates without an external database
• Sub-second latency from event to insight

A Kafka consumer can read messages — but it has no memory, no aggregation engine, and no concept of time windows.

Kafka Streams solves this. It’s a lightweight library (not a cluster) that turns your Spring Boot app into a stream processor with built-in state management.

---

What Are Kafka Streams?

Kafka Streams is a client library for building real-time applications that process data stored in Kafka topics. Unlike Spark or Flink, it doesn’t require a separate cluster — it runs inside your application.

flowchart TD
    subgraph Topology [Stream Topology - DAG]
        A[Source: raw-payments topic] --> B[Filter: amount > 0]
        B --> C[Map: Enrich with timestamp]
        C --> D[GroupBy: currency]
        D --> E[Window: Tumbling 1-min]
        E --> F[Count]
        F --> G[Sink: payment-counts topic]
        F --> H[State Store: queryable]
    end

A topology is a directed acyclic graph (DAG) of stream processors. Data flows from source topics through transformations to sink topics or state stores.

---

Kafka Streams vs Kafka Consumer

Feature	Kafka Consumer	Kafka Streams
Stateful processing	Manual (external DB)	Built-in state stores
Windowed aggregations	Manual timer logic	Native time windows
Joins (stream-stream, stream-table)	Not supported	First-class support
Exactly-once semantics	Complex to implement	Built-in
Scaling	Manual partition assignment	Automatic rebalancing
Deployment	Any	Embedded in your app
External cluster	No	No
Backpressure	Manual	Automatic

---

Setup

Docker Compose — Kafka (KRaft Mode)

No Zookeeper needed. Kafka 3.8 runs in KRaft mode:

services:
  kafka:
    image: apache/kafka:3.8.0
    environment:
      KAFKA_NODE_ID: 1
      KAFKA_PROCESS_ROLES: broker,controller
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9092,CONTROLLER://0.0.0.0:9093,EXTERNAL://0.0.0.0:29092
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://kafka:9092,EXTERNAL://localhost:29092
      KAFKA_CONTROLLER_QUORUM_VOTERS: 1@kafka:9093
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      CLUSTER_ID: 'MkU3OEVBNTcwNTJENDM2Qk'
    ports:
      - "29092:29092"

Dependencies

<dependency>
    <groupId>org.springframework.kafka</groupId>
    <artifactId>spring-kafka</artifactId>
</dependency>
<dependency>
    <groupId>org.apache.kafka</groupId>
    <artifactId>kafka-streams</artifactId>
</dependency>

Configuration

spring:
  kafka:
    bootstrap-servers: localhost:29092
    streams:
      application-id: payment-stream-processor

---

Enabling Kafka Streams in Spring Boot

@Configuration
@EnableKafkaStreams
public class KafkaStreamsConfig {

    @Bean(name = KafkaStreamsDefaultProperties.DEFAULT_STREAMS_CONFIG_BEAN_NAME)
    public KafkaStreamsConfiguration kafkaStreamsConfiguration() {
        Map<String, Object> props = new HashMap<>();
        props.put(StreamsConfig.APPLICATION_ID_CONFIG, "payment-stream-processor");
        props.put(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:29092");
        props.put(StreamsConfig.DEFAULT_KEY_SERDE_CLASS_CONFIG, Serdes.StringSerde.class.getName());
        props.put(StreamsConfig.DEFAULT_VALUE_SERDE_CLASS_CONFIG, Serdes.StringSerde.class.getName());
        props.put(StreamsConfig.COMMIT_INTERVAL_MS_CONFIG, 1000);
        return new KafkaStreamsConfiguration(props);
    }
}

@EnableKafkaStreams creates a StreamsBuilderFactoryBean that manages the lifecycle of your Kafka Streams instance.

---

Building a Topology

The topology is where all the processing logic lives. In Spring Boot, you inject StreamsBuilder:

@Component
public class PaymentStreamTopology {

    public static final String STATE_STORE_NAME = "payment-counts-store";

    @Autowired
    public void buildTopology(StreamsBuilder streamsBuilder) {
        // 1. Read from source topic
        KStream<String, String> rawStream = streamsBuilder.stream("raw-payments");

        // 2. Deserialize + filter invalid
        KStream<String, RawPayment> payments = rawStream
                .mapValues(this::deserialize)
                .filter((key, payment) -> payment != null);

        // 3. Filter: positive amounts only
        KStream<String, RawPayment> validPayments = payments
                .filter((key, payment) -> payment.amount() > 0);

        // 4. Transform: enrich with processing metadata
        KStream<String, EnrichedPayment> enriched = validPayments
                .mapValues(raw -> new EnrichedPayment(
                        raw.id(), raw.currency(), raw.amount(),
                        raw.amount() > 10000 ? "HIGH_VALUE" : "NORMAL",
                        Instant.now()
                ));

        // 5. Group by currency → window → count
        KTable<Windowed<String>, Long> counts = enriched
                .groupBy((key, p) -> p.currency())
                .windowedBy(TimeWindows.ofSizeWithNoGrace(Duration.ofMinutes(1)))
                .count(Materialized.as(STATE_STORE_NAME));

        // 6. Write to output topic
        counts.toStream()
                .map((windowedKey, count) -> KeyValue.pair(windowedKey.key(),
                        formatJson(windowedKey, count)))
                .to("payment-counts");
    }
}

Each step is a processor node in the topology graph. Kafka Streams handles partitioning, rebalancing, and fault tolerance.

---

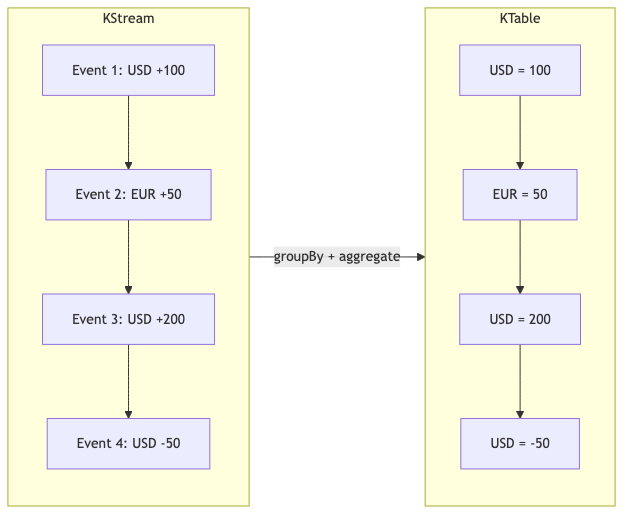

KStream vs KTable

This is the fundamental duality in Kafka Streams:

flowchart LR
    subgraph KStream
        direction TB
        S1["Event 1: USD +100"] --> S2["Event 2: EUR +50"]
        S2 --> S3["Event 3: USD +200"]
        S3 --> S4["Event 4: USD -50"]
    end
    subgraph KTable
        direction TB
        T1["USD = 100"] --> T2["EUR = 50"]
        T2 --> T3["USD = 200"]
        T3 --> T4["USD = -50"]
    end
    KStream -->|"groupBy + aggregate"| KTable

Concept	KStream	KTable
Semantics	Append-only event log	Latest value per key
Analogy	Transaction log	Current balance
Operations	filter, map, join, branch	aggregate, reduce, join
Storage	None (pass-through)	State store (RocksDB)

KStream: Every record is an independent event.
KTable: Every record is an update to the latest value for that key.

---

Windowed Aggregations

Kafka Streams supports three window types:

Window Type	Description	Use Case
Tumbling	Fixed-size, non-overlapping	“Payments per minute”
Hopping	Fixed-size, overlapping	“5-min average updated every 1 min”
Session	Activity-based, gap-triggered	“User sessions with 30-min timeout”

Tumbling Window (our example)

.windowedBy(TimeWindows.ofSizeWithNoGrace(Duration.ofMinutes(1)))
.count()

Every 1-minute window is independent. At minute boundary, the count resets for the new window.

Hopping Window

.windowedBy(TimeWindows.ofSizeAndGrace(Duration.ofMinutes(5), Duration.ZERO)
        .advanceBy(Duration.ofMinutes(1)))
.count()

5-minute windows that advance every 1 minute — overlapping provides smoother aggregates.

Session Window

.windowedBy(SessionWindows.ofInactivityGapWithNoGrace(Duration.ofMinutes(30)))
.count()

Windows close after 30 minutes of inactivity for that key.

---

State Stores: Queryable from REST

State stores are Kafka Streams’ built-in storage (backed by RocksDB). The magic: they’re queryable from your REST API.

@GetMapping("/api/streams/counts")
public Map<String, Object> getPaymentCounts() {
    KafkaStreams kafkaStreams = factoryBean.getKafkaStreams();

    ReadOnlyWindowStore<String, Long> windowStore = kafkaStreams.store(
            StoreQueryParameters.fromNameAndType(
                    PaymentStreamTopology.STATE_STORE_NAME,
                    QueryableStoreTypes.windowStore()
            )
    );

    Instant now = Instant.now();
    Instant oneMinuteAgo = now.minusSeconds(60);

    Map<String, Long> counts = new HashMap<>();
    for (String currency : List.of("USD", "EUR", "GBP", "JPY", "INR")) {
        try (WindowStoreIterator<Long> iterator =
                     windowStore.fetch(currency, oneMinuteAgo, now)) {
            long total = 0;
            while (iterator.hasNext()) {
                total += iterator.next().value;
            }
            if (total > 0) counts.put(currency, total);
        }
    }

    return Map.of("window", Map.of("from", oneMinuteAgo, "to", now), "counts", counts);
}

This is called Interactive Queries — reading from Kafka Streams state stores via HTTP without an external database.

---

Interactive Queries: Expose State via Endpoint

The pattern:

1. Define a Materialized state store in your topology
2. Inject StreamsBuilderFactoryBean into your controller
3. Get the KafkaStreams instance
4. Query the store with StoreQueryParameters

For multi-instance deployments, Kafka Streams can discover which instance owns which partition — enabling distributed queries across instances.

---

Testing with TopologyTestDriver

Kafka Streams provides TopologyTestDriver for unit testing without a running Kafka broker:

@Test
void shouldFilterNegativeAmounts() {
    StreamsBuilder builder = new StreamsBuilder();
    new PaymentStreamTopology().buildTopology(builder);
    Topology topology = builder.build();

    try (TopologyTestDriver driver = new TopologyTestDriver(topology, props)) {
        TestInputTopic<String, String> inputTopic =
                driver.createInputTopic("raw-payments",
                        new StringSerializer(), new StringSerializer());

        TestOutputTopic<String, String> outputTopic =
                driver.createOutputTopic("payment-counts",
                        new StringDeserializer(), new StringDeserializer());

        // Send a negative amount — should be filtered out
        inputTopic.pipeInput("key1", "{\"id\":\"1\",\"currency\":\"USD\",\"amount\":-50}");

        assertTrue(outputTopic.isEmpty());
    }
}

No Kafka broker needed. Tests run in milliseconds.

---

Common Problems

Problem	Cause	Solution
StreamsException: TopologyException	Topic doesn’t exist	Create topics before starting or set auto.create.topics.enable=true
State store query returns empty	Store not yet ready (rebalancing)	Check KafkaStreams.state() == RUNNING before querying
Duplicate processing after restart	At-least-once default	Enable exactly-once: processing.guarantee=exactly_once_v2
High memory usage	Large state stores	Configure RocksDB cache size, enable changelog compaction
Rebalancing storms	Frequent restarts or slow processing	Increase max.poll.interval.ms, tune session.timeout.ms
Serialization errors	Serde mismatch	Match Serde to actual data type in Consumed/Produced/Grouped

---

Full Working Example

The complete implementation is available on GitHub:

spring-boot-examples/34-kafka-streams

Clone and run:

git clone https://github.com/AnupamSinha/spring-boot-examples.git
cd spring-boot-examples/34-kafka-streams
docker-compose up -d
./mvnw spring-boot:run

The app auto-produces test events and processes them. Query the state store:

curl http://localhost:8080/api/streams/counts

---
