API Versioning Strategies in Spring Boot — URI, Header, and Content Negotiation

The Problem — Breaking Changes

Your API is live. Clients depend on the response format. Now you need to:

• Rename a field (userName → username)
• Remove a deprecated field
• Change a data type (String → Object)
• Restructure the response entirely

Without versioning, every change risks breaking existing clients. You need a strategy that lets you evolve the API while giving clients time to migrate.

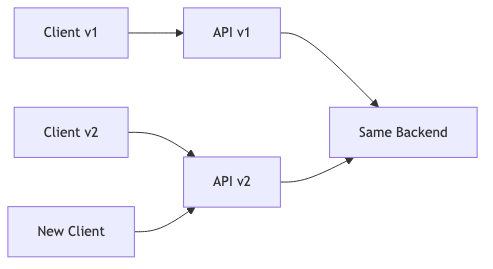

graph LR
    A[Client v1] --> B[API v1]
    C[Client v2] --> D[API v2]
    E[New Client] --> D
    B --> F[Same Backend]
    D --> F

The challenge isn’t implementing versions — it’s choosing the right strategy and managing the lifecycle.

---

Strategy 1: URI Path Versioning

The most visible and widely used approach. The version is part of the URL.

GET /api/v1/users/42
GET /api/v2/users/42

Implementation

@RestController
@RequestMapping("/api/v1/users")
public class UserControllerV1 {

    @GetMapping("/{id}")
    public UserResponseV1 getUser(@PathVariable Long id) {
        User user = userService.findById(id);
        return new UserResponseV1(user.getId(), user.getFirstName() + " " + user.getLastName(), user.getEmail());
    }
}

public record UserResponseV1(Long id, String userName, String email) {}

@RestController
@RequestMapping("/api/v2/users")
public class UserControllerV2 {

    @GetMapping("/{id}")
    public UserResponseV2 getUser(@PathVariable Long id) {
        User user = userService.findById(id);
        return new UserResponseV2(
                user.getId(),
                new UserResponseV2.Name(user.getFirstName(), user.getLastName()),
                user.getEmail(),
                user.getCreatedAt()
        );
    }
}

public record UserResponseV2(Long id, Name name, String email, Instant createdAt) {
    public record Name(String first, String last) {}
}

Shared Logic with a Versioned Facade

Avoid duplicating business logic. Version the response, not the service:

@RestController
@RequestMapping("/api")
public class UserController {

    private final UserService userService;

    @GetMapping("/v1/users/{id}")
    public UserResponseV1 getUserV1(@PathVariable Long id) {
        return userService.findById(id).toV1();
    }

    @GetMapping("/v2/users/{id}")
    public UserResponseV2 getUserV2(@PathVariable Long id) {
        return userService.findById(id).toV2();
    }
}

---

Strategy 2: Custom Header Versioning

The version lives in a request header, keeping URLs clean.

GET /api/users/42
X-API-Version: 1

GET /api/users/42
X-API-Version: 2

Implementation with Custom RequestCondition

Spring MVC doesn’t support header-based versioning out of the box, but you can build it with a custom annotation and RequestCondition:

@Target({ElementType.METHOD, ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
public @interface ApiVersion {
    int value();
}

public class ApiVersionCondition implements RequestCondition<ApiVersionCondition> {

    private final int version;

    public ApiVersionCondition(int version) {
        this.version = version;
    }

    @Override
    public ApiVersionCondition combine(ApiVersionCondition other) {
        // Method-level annotation takes precedence
        return new ApiVersionCondition(other.version);
    }

    @Override
    public ApiVersionCondition getMatchingCondition(HttpServletRequest request) {
        String headerVersion = request.getHeader("X-API-Version");
        if (headerVersion == null) {
            // Default to latest version if no header
            return this;
        }
        int requestedVersion = Integer.parseInt(headerVersion);
        if (requestedVersion == this.version) {
            return this;
        }
        return null; // no match
    }

    @Override
    public int compareTo(ApiVersionCondition other, HttpServletRequest request) {
        return Integer.compare(other.version, this.version); // higher version wins
    }
}

Register the condition via a custom RequestMappingHandlerMapping:

public class ApiVersionRequestMappingHandlerMapping extends RequestMappingHandlerMapping {

    @Override
    protected RequestCondition<?> getCustomTypeCondition(Class<?> handlerType) {
        ApiVersion annotation = AnnotationUtils.findAnnotation(handlerType, ApiVersion.class);
        return annotation != null ? new ApiVersionCondition(annotation.value()) : null;
    }

    @Override
    protected RequestCondition<?> getCustomMethodCondition(Method method) {
        ApiVersion annotation = AnnotationUtils.findAnnotation(method, ApiVersion.class);
        return annotation != null ? new ApiVersionCondition(annotation.value()) : null;
    }
}

@Configuration
public class WebMvcConfig implements WebMvcRegistrations {

    @Override
    public RequestMappingHandlerMapping getRequestMappingHandlerMapping() {
        return new ApiVersionRequestMappingHandlerMapping();
    }
}

Now use it in controllers:

@RestController
@RequestMapping("/api/users")
public class UserController {

    @GetMapping("/{id}")
    @ApiVersion(1)
    public UserResponseV1 getUserV1(@PathVariable Long id) {
        return userService.findById(id).toV1();
    }

    @GetMapping("/{id}")
    @ApiVersion(2)
    public UserResponseV2 getUserV2(@PathVariable Long id) {
        return userService.findById(id).toV2();
    }
}

---

Strategy 3: Content Negotiation (Accept Header)

Uses the Accept header with a vendor-specific media type:

GET /api/users/42
Accept: application/vnd.myapp.v1+json

GET /api/users/42
Accept: application/vnd.myapp.v2+json

Implementation

@RestController
@RequestMapping("/api/users")
public class UserController {

    @GetMapping(value = "/{id}", produces = "application/vnd.myapp.v1+json")
    public UserResponseV1 getUserV1(@PathVariable Long id) {
        return userService.findById(id).toV1();
    }

    @GetMapping(value = "/{id}", produces = "application/vnd.myapp.v2+json")
    public UserResponseV2 getUserV2(@PathVariable Long id) {
        return userService.findById(id).toV2();
    }
}

Register custom media types so Spring can serialize them as JSON:

@Configuration
public class WebConfig implements WebMvcConfigurer {

    @Override
    public void configureContentNegotiation(ContentNegotiationConfigurer configurer) {
        configurer.defaultContentType(MediaType.APPLICATION_JSON);
    }

    @Override
    public void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
        converters.stream()
                .filter(c -> c instanceof MappingJackson2HttpMessageConverter)
                .map(c -> (MappingJackson2HttpMessageConverter) c)
                .forEach(converter -> {
                    var types = new ArrayList<>(converter.getSupportedMediaTypes());
                    types.add(MediaType.parseMediaType("application/vnd.myapp.v1+json"));
                    types.add(MediaType.parseMediaType("application/vnd.myapp.v2+json"));
                    converter.setSupportedMediaTypes(types);
                });
    }
}

---

Comparison

Criteria	URI Path	Custom Header	Content Negotiation
Visibility	High — version in URL	Low — hidden in headers	Low — hidden in Accept
Caching	Easy — URL-based caching works	Requires Vary header	Requires Vary header
Browser testing	Easy — just change URL	Needs tools (curl, Postman)	Needs tools
API gateway routing	Simple path matching	Header inspection	Header inspection
Client complexity	Low	Medium	Medium-High
URL cleanliness	Cluttered (/v1/, /v2/)	Clean	Clean
REST purist opinion	“Not RESTful”	Acceptable	Preferred
Real-world adoption	Most common (GitHub, Stripe)	Common (Azure)	Rare (GitHub alternative)

---

Deprecation Strategy

Versioning is only half the story. You need a plan for sunsetting old versions.

Sunset Header (RFC 8594)

Signal to clients that a version is going away:

@GetMapping("/{id}")
@ApiVersion(1)
public ResponseEntity<UserResponseV1> getUserV1(@PathVariable Long id) {
    UserResponseV1 response = userService.findById(id).toV1();
    return ResponseEntity.ok()
            .header("Sunset", "Sat, 01 Mar 2027 00:00:00 GMT")
            .header("Deprecation", "true")
            .header("Link", "</api/v2/users>; rel=\"successor-version\"")
            .body(response);
}

@Deprecated Annotation for Internal Tracking

@Deprecated(since = "v2", forRemoval = true)
@GetMapping("/{id}")
@ApiVersion(1)
public UserResponseV1 getUserV1(@PathVariable Long id) {
    return userService.findById(id).toV1();
}

Deprecation Workflow

graph LR
    A[v1 Active] --> B[v1 Deprecated + v2 Released]
    B --> C[v1 Sunset Header Added]
    C --> D[v1 Returns 410 Gone]
    D --> E[v1 Code Removed]

Timeline guidance:

• Deprecation notice: 6+ months before removal
• Sunset header: Start immediately when deprecated
• 410 Gone: After sunset date passes
• Code removal: After confirming zero traffic on deprecated version

---

When to Version

Not every change needs a new version. Follow these semantic rules:

Breaking (requires new version):

• Removing a field from the response
• Renaming a field
• Changing a field’s type
• Removing an endpoint
• Changing error response format

Non-breaking (safe without versioning):

• Adding a new field to the response
• Adding a new endpoint
• Adding an optional request parameter
• Fixing a bug (even if output changes)
• Performance improvements

Gray area (use feature flags or negotiate):

• Adding a required request parameter
• Changing default values
• Changing pagination defaults

A useful rule: if existing clients break without code changes, it needs a version.

---

Common Problems

Problem	Cause	Solution
Duplicated business logic	Separate controllers per version	Share service layer, version only the response mapping
Version explosion	Too many versions active	Strict deprecation policy with sunset dates
Testing combinatorics	Every endpoint × every version	Version integration tests, share unit tests for business logic
Documentation drift	Multiple API docs	Use OpenAPI groups per version
Default version confusion	No version header sent	Define a clear default (latest or oldest) and document it
Custom header not forwarded	Proxy/CDN strips headers	Whitelist X-API-Version in your reverse proxy config
Content negotiation 406 errors	Custom media type not registered	Register vendor types in message converters
Routing conflicts	Two methods match same request	Ensure RequestCondition properly differentiates

---

Recommendations

1. Start with URI path versioning — it’s the simplest, most debuggable, and best supported by API gateways and caches
2. Use header/content negotiation when URL aesthetics matter or you have sophisticated clients (internal microservices, SDKs)
3. Never version internal APIs between your own services — use backward-compatible evolution instead
4. Version the API, not individual endpoints — all endpoints should be at the same version
5. Limit active versions to 2-3 — more than that means your deprecation process is broken

---

References

• RFC 8594 — The Sunset HTTP Header Field
• Spring MVC Request Mapping
• API Versioning — Microsoft REST API Guidelines
• Stripe API Versioning
• GitHub API Versioning
