Load Testing Spring Boot with Gatling — Find Your Breaking Point
Find your Spring Boot application's breaking point with Gatling. Covers writing simulations, injection profiles (ramp, constant, stress), assertions, HTML reports, CI integration, and interpreting results to find bottlenecks.
Load Testing Spring Boot with Gatling — Find Your Breaking Point
The Problem — Works in Dev, Dies in Prod
Your application runs perfectly on your laptop. Response times are instant. Everything feels snappy.
Then you deploy to production. 500 concurrent users hit the server. Response times climb from 50ms to 5 seconds. The thread pool saturates. The database connection pool fills up. The JVM starts garbage collecting constantly. Your pager goes off at 2 AM.
Load testing before deployment is the difference between “we know our limits” and “we’ll find out in production.”
What is Gatling
Gatling is a load testing tool built on Scala with:
- A code-as-test DSL (no XML configuration files)
- High-performance engine (async, non-blocking — can simulate thousands of users on a single machine)
- Beautiful HTML reports with response time distributions, percentiles, and throughput graphs
- Assertions for CI/CD integration (fail the build if response times exceed thresholds)
Unlike JMeter’s GUI-based approach, Gatling simulations are code — version controlled, reviewable, and composable.
Setup
Target Application (Spring Boot)
1
2
3
4
5
6
7
8
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
Gatling Module
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<dependencies>
<dependency>
<groupId>io.gatling.highcharts</groupId>
<artifactId>gatling-charts-highcharts</artifactId>
<version>3.11.5</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>io.gatling</groupId>
<artifactId>gatling-test-framework</artifactId>
<version>3.11.5</version>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>net.alchim31.maven</groupId>
<artifactId>scala-maven-plugin</artifactId>
<version>4.9.1</version>
</plugin>
<plugin>
<groupId>io.gatling</groupId>
<artifactId>gatling-maven-plugin</artifactId>
<version>4.9.6</version>
</plugin>
</plugins>
</build>
Writing a Simulation
A Gatling simulation has four parts:
- HTTP Protocol — base URL, headers
- Scenarios — user behavior (what they do)
- Injection Profile — how many users, how fast
- Assertions — pass/fail criteria
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
class ProductApiSimulation extends Simulation {
val httpProtocol = http
.baseUrl("http://localhost:8080")
.acceptHeader("application/json")
.contentTypeHeader("application/json")
val getAllProducts = scenario("Get All Products")
.exec(
http("GET /api/products")
.get("/api/products")
.check(status.is(200))
.check(jsonPath("$[0].id").exists)
.check(responseTimeInMillis.lte(500))
)
setUp(
getAllProducts.inject(rampUsers(100).during(30.seconds))
).protocols(httpProtocol)
.assertions(
global.responseTime.percentile3.lt(1000),
global.successfulRequests.percent.gt(95.0)
)
}
Injection Profiles
Injection profiles define how users enter the system. Choose based on what you’re testing:
| Profile | Code | Use Case |
|---|---|---|
| Ramp up | rampUsers(100).during(30.seconds) | Normal load growth |
| At once | atOnceUsers(200) | Spike testing (flash sale) |
| Constant rate | constantUsersPerSec(50).during(60.seconds) | Sustained throughput |
| Staircase | incrementUsersPerSec(10).times(5).eachLevelLasting(30.seconds) | Finding capacity |
| Nothing | nothingFor(10.seconds) | Think time between phases |
| Peak + valley | Combine multiple inject() calls | Real traffic patterns |
Mixed Workload Example
Real traffic isn’t one endpoint. Model realistic user behavior:
1
2
3
4
5
6
7
8
val mixedWorkload = scenario("Mixed Workload")
.randomSwitch(
60.0 -> exec(http("GET /api/products").get("/api/products")),
30.0 -> exec(http("GET /api/products/{id}").get("/api/products/1")),
10.0 -> exec(http("POST /api/products")
.post("/api/products")
.body(StringBody("""{"name": "New", "price": 19.99}""")))
)
This mirrors real traffic: 60% list, 30% detail, 10% create.
Running Tests
1
2
3
4
5
# Start your Spring Boot app
cd app && mvn spring-boot:run
# In another terminal, run Gatling
cd gatling && mvn gatling:test -Dgatling.simulationClass=simulations.ProductApiSimulation
Gatling prints real-time progress:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
================================================================================
---- Global Information --------------------------------------------------------
> request count 300 (OK=297 KO=3 )
> min response time 12 (OK=12 KO=503 )
> max response time 487 (OK=487 KO=512 )
> mean response time 89 (OK=87 KO=508 )
> std deviation 74 (OK=71 KO=4 )
> response time 50th percentile 67 (OK=67 KO=508 )
> response time 75th percentile 112 (OK=112 KO=512 )
> response time 95th percentile 234 (OK=232 KO=512 )
> response time 99th percentile 412 (OK=410 KO=512 )
> mean requests/sec 10 (OK=9.9 KO=0.1 )
---- Response Time Distribution ------------------------------------------------
> t < 800 ms 297 ( 99%)
> 800 ms <= t < 1200 ms 0 ( 0%)
> t >= 1200 ms 0 ( 0%)
> failed 3 ( 1%)
================================================================================
Reading HTML Reports
After the test, Gatling generates a detailed HTML report at target/gatling/:
Key metrics to examine:
- Response Time Distribution — where most requests land (p50, p75, p95, p99)
- Active Users Over Time — did all users get served or did they queue?
- Response Time Percentiles Over Time — when did performance degrade?
- Requests Per Second — actual throughput achieved
The p95 and p99 are what matter. The mean lies — it hides the tail latency that real users experience.
Assertions
Assertions let you fail the build when performance degrades:
1
2
3
4
5
6
7
8
setUp(...)
.assertions(
global.responseTime.percentile3.lt(1000), // p95 < 1000ms
global.successfulRequests.percent.gt(95.0), // >95% success
forAll.responseTime.max.lt(5000), // No request > 5s
details("GET /api/products")
.responseTime.mean.lt(200) // This endpoint < 200ms mean
)
If assertions fail, the Maven build fails — perfect for CI gates.

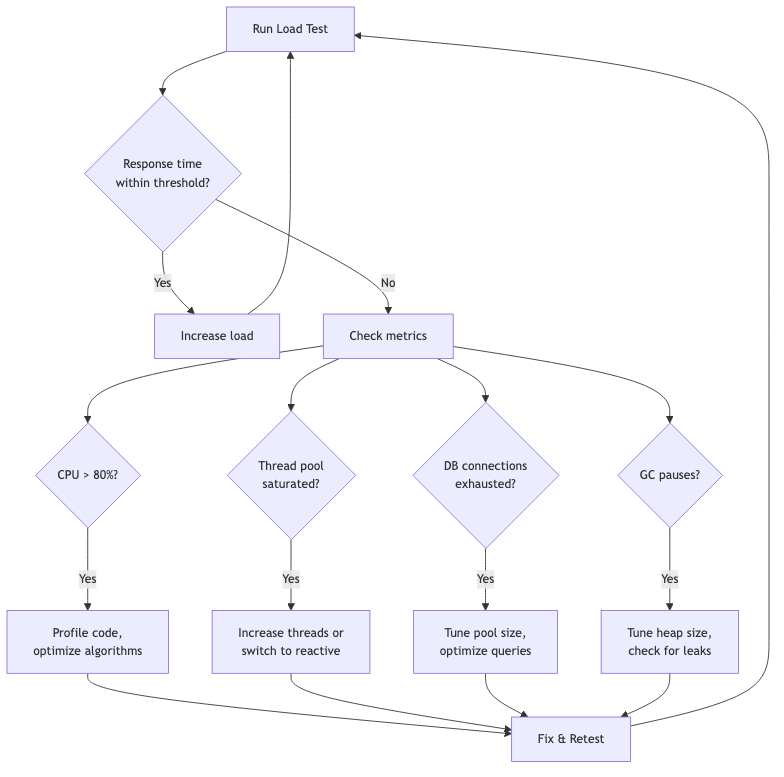

Identifying Bottlenecks
graph TD
A[Run Load Test] --> B{Response time<br/>within threshold?}
B -->|Yes| C[Increase load]
C --> A
B -->|No| D[Check metrics]
D --> E{CPU > 80%?}
E -->|Yes| F[Profile code,<br/>optimize algorithms]
D --> G{Thread pool<br/>saturated?}
G -->|Yes| H[Increase threads or<br/>switch to reactive]
D --> I{DB connections<br/>exhausted?}
I -->|Yes| J[Tune pool size,<br/>optimize queries]
D --> K{GC pauses?}
K -->|Yes| L[Tune heap size,<br/>check for leaks]
F --> M[Fix & Retest]
H --> M
J --> M
L --> M
M --> A
Common Spring Boot bottlenecks under load:
- Tomcat thread pool — default is 200 threads. If all 200 are blocked waiting on I/O, new requests queue.
- Database connection pool — HikariCP default is 10 connections. Under load, threads wait for connections.
- Synchronous blocking — a
Thread.sleep()or slow HTTP call blocks a thread. - GC pressure — creating too many objects per request causes frequent garbage collection.
CI Integration — GitHub Actions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
name: Load Test
on: [push]
jobs:
load-test:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v4
- uses: actions/setup-java@v4
with:
distribution: temurin
java-version: 21
- name: Start application
run: cd app && mvn spring-boot:run &
- name: Wait for app
run: |
for i in $(seq 1 30); do
curl -s http://localhost:8080/api/products && break || sleep 2
done
- name: Run Gatling
run: cd gatling && mvn gatling:test
- name: Upload Report
uses: actions/upload-artifact@v4
with:
name: gatling-report
path: gatling/target/gatling/**/index.html
The build fails if assertions aren’t met — performance regressions are caught before merge.
Gatling vs JMeter vs k6
| Criteria | Gatling | JMeter | k6 |
|---|---|---|---|
| Language | Scala DSL | XML/GUI | JavaScript |
| Protocol | HTTP, WebSocket | HTTP, JDBC, JMS, etc. | HTTP, WebSocket, gRPC |
| Reports | Beautiful HTML (built-in) | Basic (needs plugins) | Cloud dashboard or JSON |
| Scalability | Thousands of users per machine | Hundreds per machine | Thousands per machine |
| CI-friendly | Yes (Maven/Gradle) | Possible but awkward | Yes (CLI) |
| Learning curve | Medium (Scala) | Low (GUI) | Low (JavaScript) |
| Code as test | Yes | No (XML) | Yes |
| Resource usage | Low (async I/O) | High (threads) | Low (Go runtime) |
| Cloud option | Gatling Enterprise | BlazeMeter | Grafana Cloud k6 |
Choose Gatling when: you want beautiful reports, code-as-test, and Maven/Gradle integration for Java projects.
Common Problems
| Problem | Cause | Solution |
|---|---|---|
| “Connection refused” | App not running | Start Spring Boot before Gatling |
| All requests fail | Wrong base URL | Check http.baseUrl() |
| Unrealistic results | No think time | Add pause() between requests |
| “Too many open files” | OS limit | Increase ulimit -n 65535 |
| Scala compilation errors | Wrong Scala version | Match scala.version to Gatling’s |
| Maven can’t find Gatling | Missing plugin | Add gatling-maven-plugin |
| Results show 0 users | Wrong simulation class | Use -Dgatling.simulationClass= |
Full Working Example
Complete project with Spring Boot app and Gatling simulations:
https://github.com/AnupamSinha/spring-boot-examples/tree/main/32-gatling
1
2
3
4
5
6
7
8
9
# Start the target app
cd 32-gatling/app && mvn spring-boot:run
# Run load test (in another terminal)
cd 32-gatling/gatling
mvn gatling:test -Dgatling.simulationClass=simulations.ProductApiSimulation
# Open the HTML report
open target/gatling/productapisimulation-*/index.html
References
